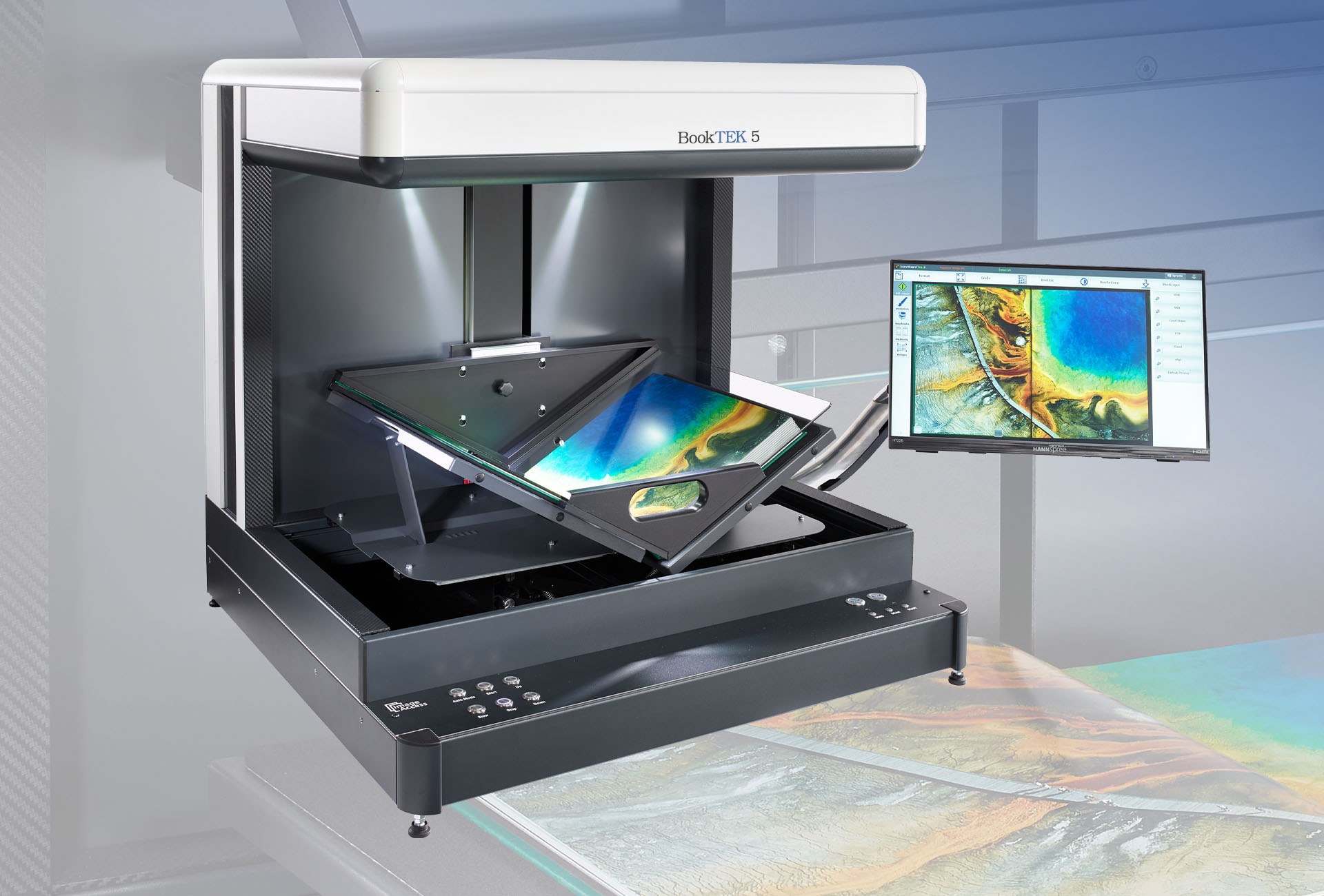

BookTEK 5 V2 Semiautomatic
High level 600 dpi production system.
Unique self-adjusting and V-shaped book cradle with motor driven glass plate.
High quality and maximum productivity
The BookTEK 5 V2S Semiautomatic delivers high-quality, high-speed digitization, ideal for 24/7 operation. Its standout feature is a self-adjusting book cradle with a motorized V-shaped glass plate, plus an optional flat glass plate. It efficiently scans originals up to A2+—including books, magazines, posters, and bound documents—at up to 600 dpi.

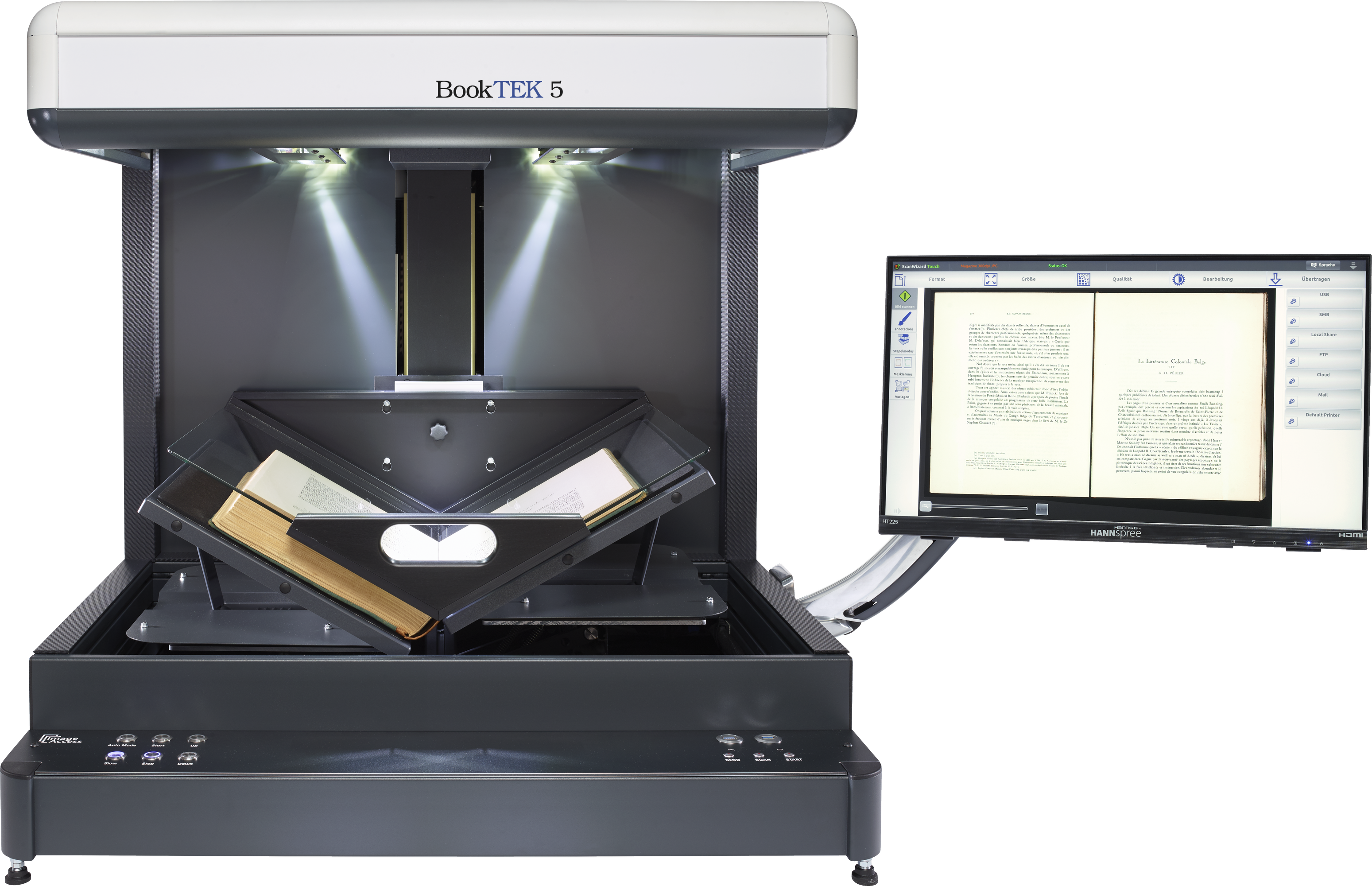

Gentle on books

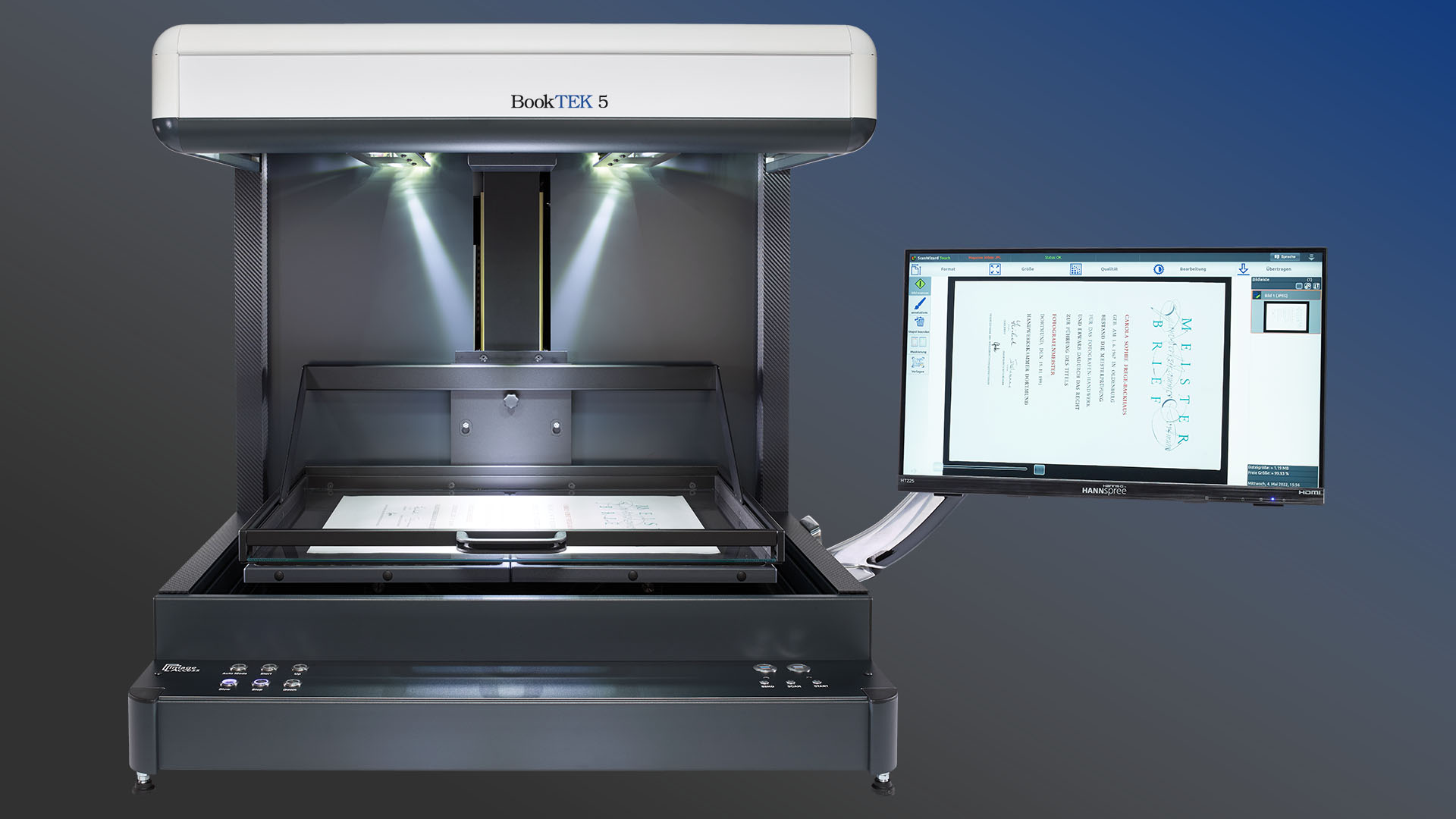

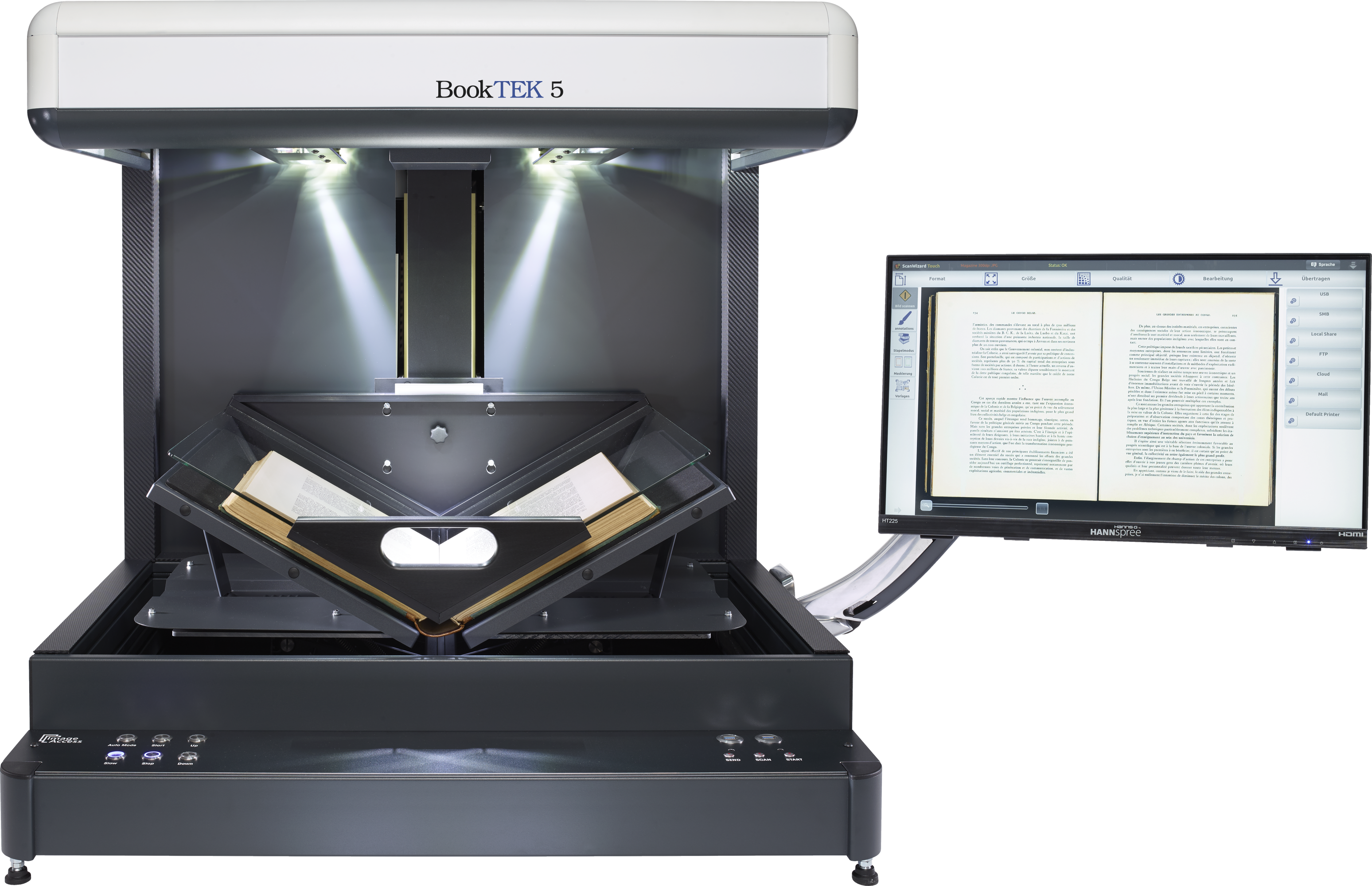

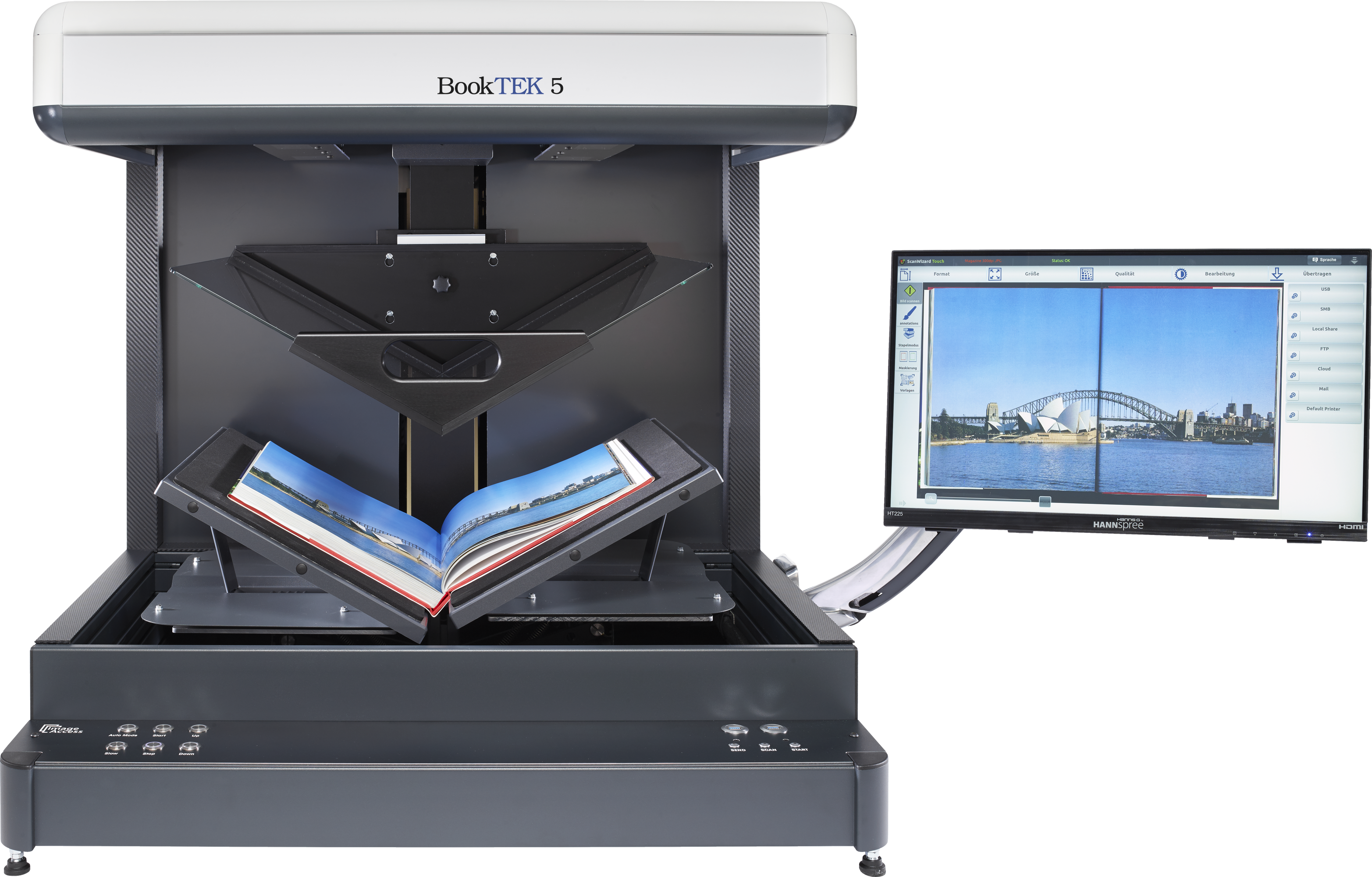

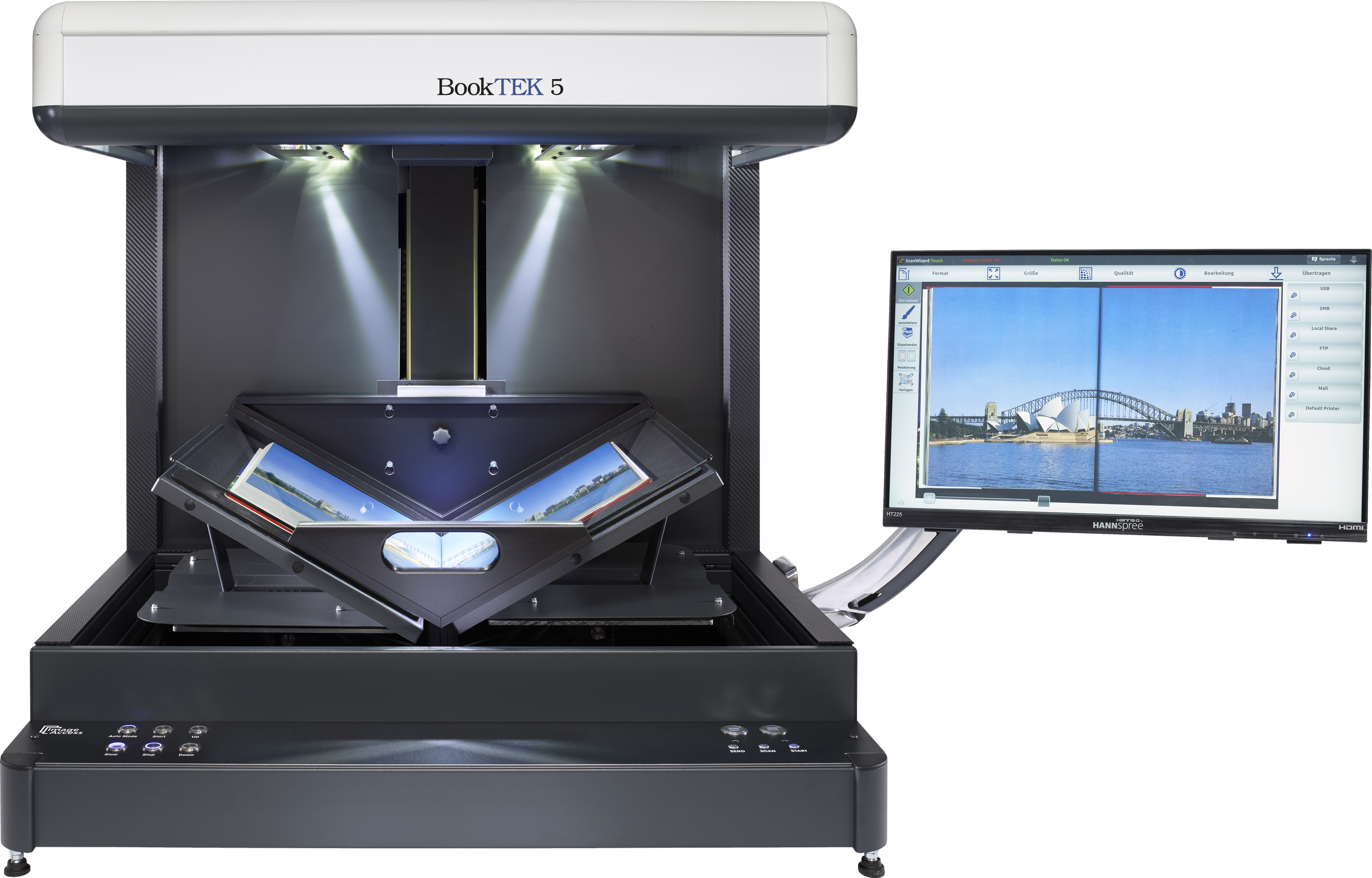

The unique self-adjusting book cradle offers the flexibility to scan in V-mode at a gentle 120-degree angle or in flat mode with the optional flat glass plate. This thoughtful design minimizes strain on delicate book spines, ensuring high-quality, preservation-friendly scans while safeguarding document integrity.

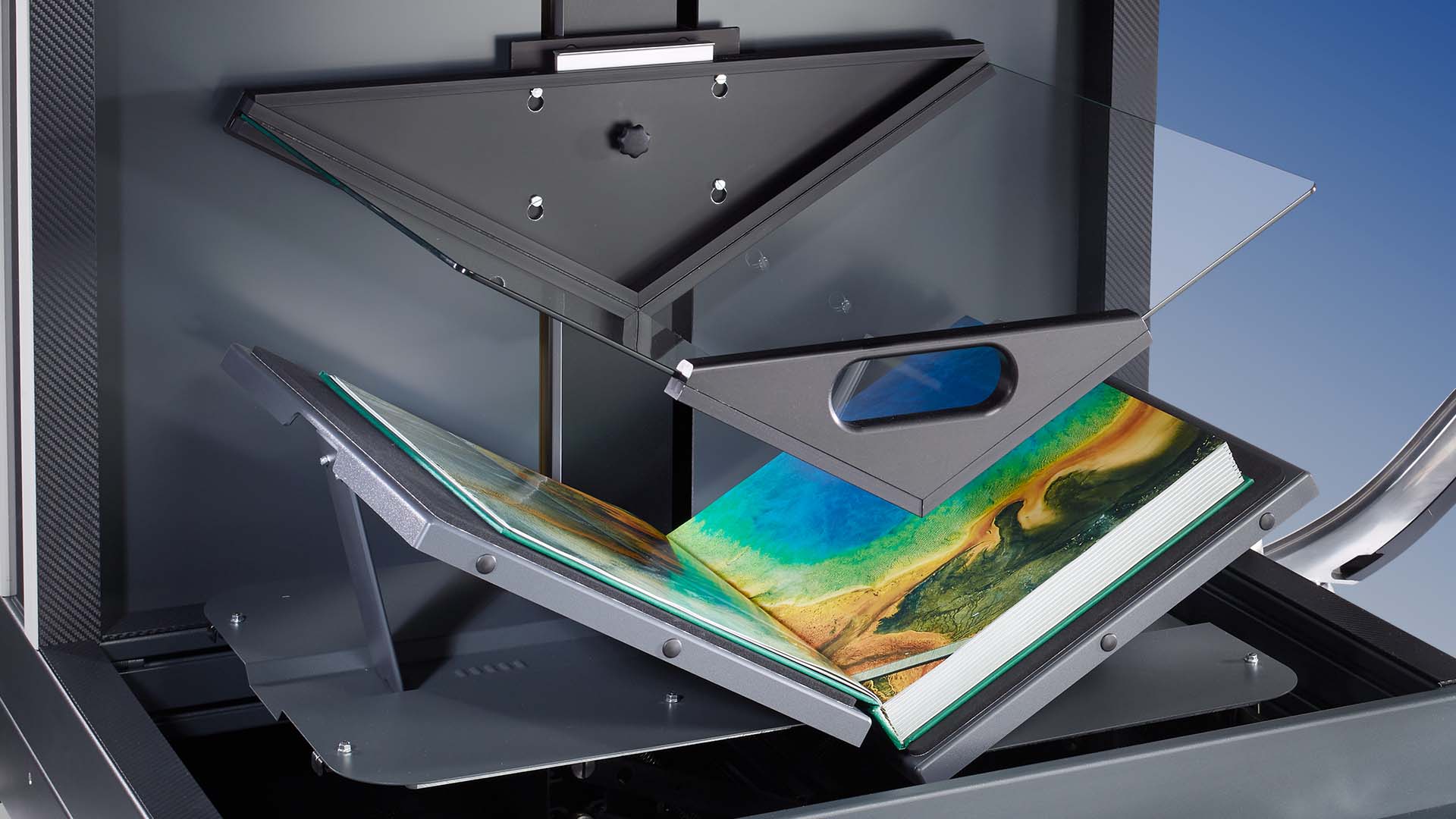

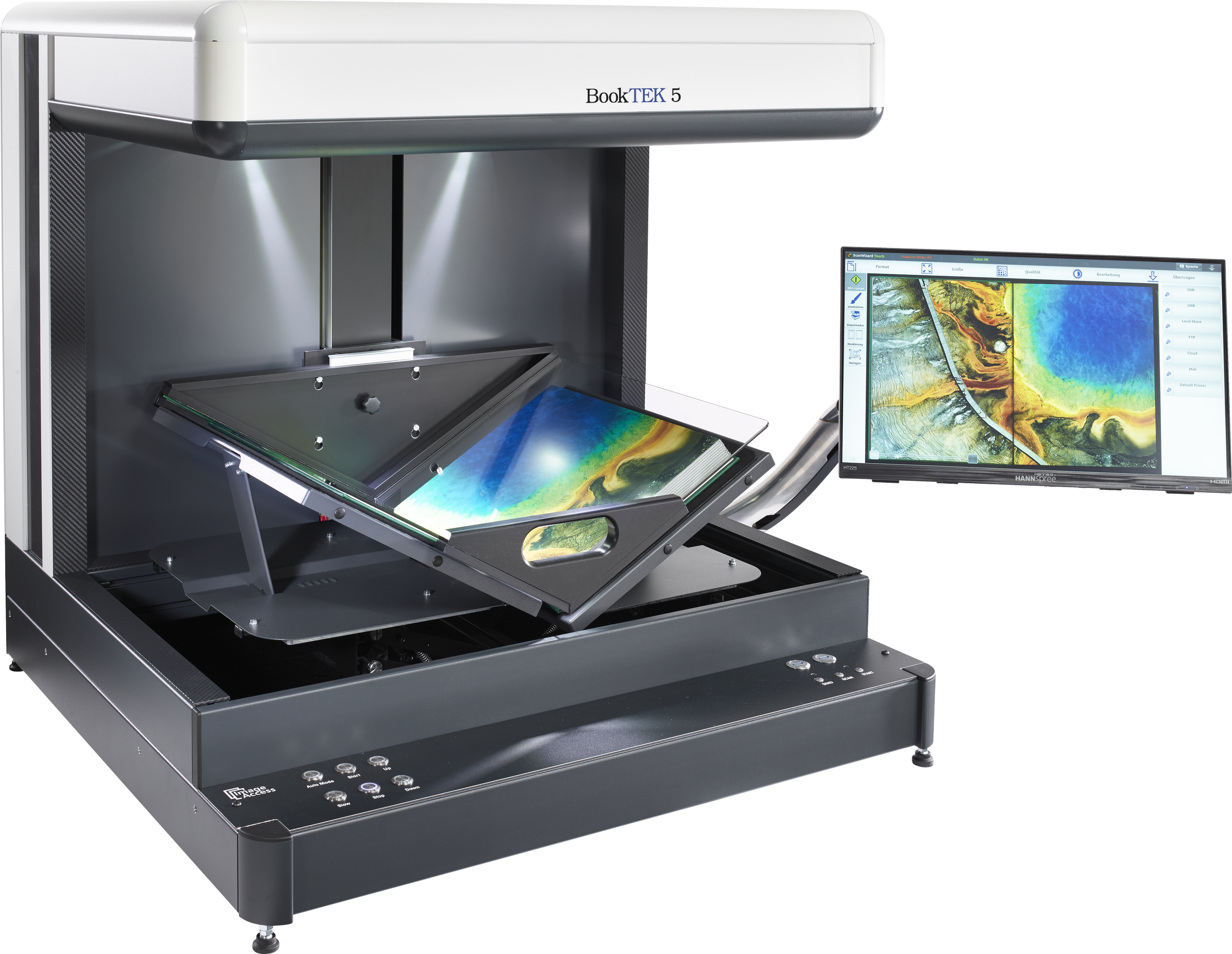

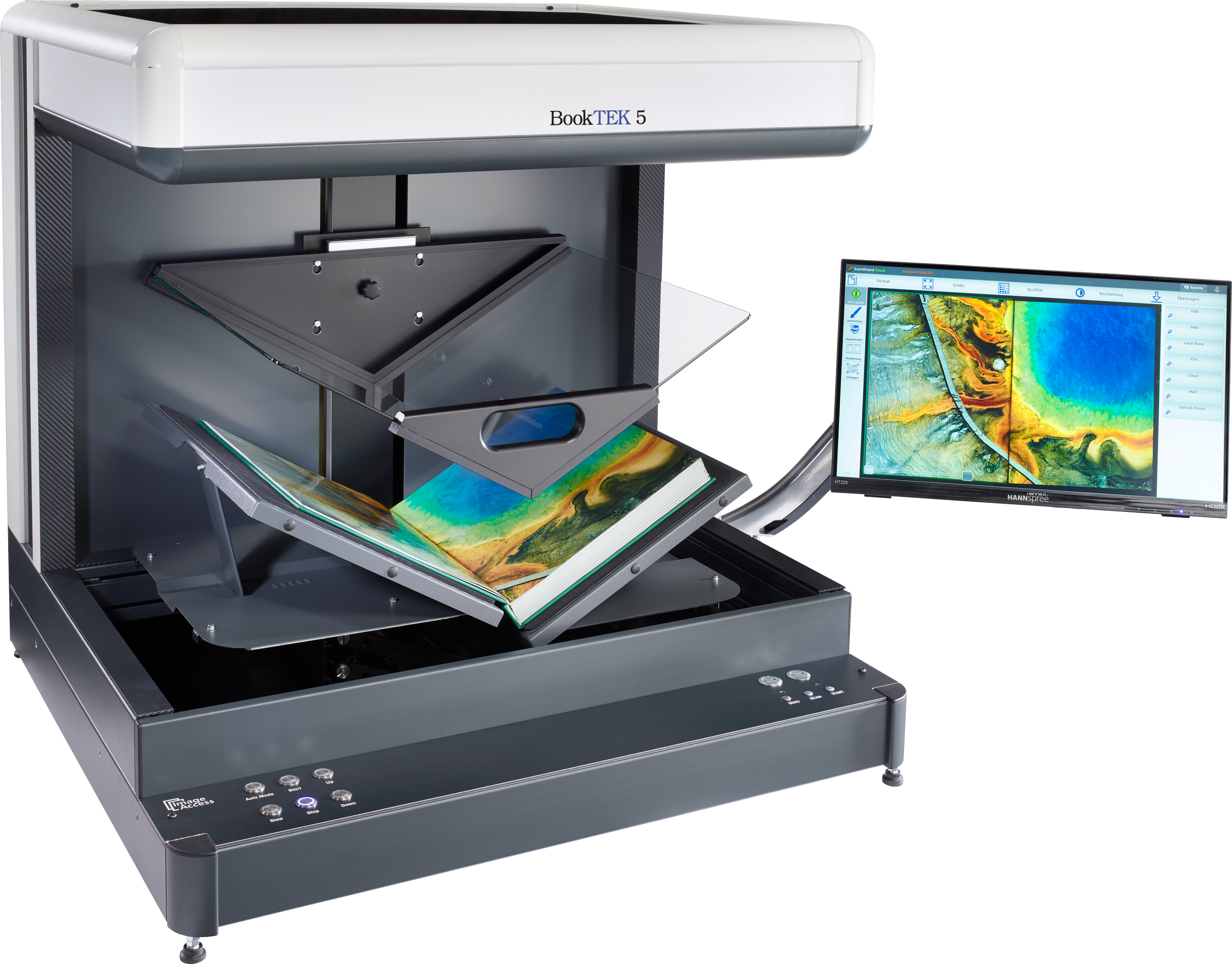

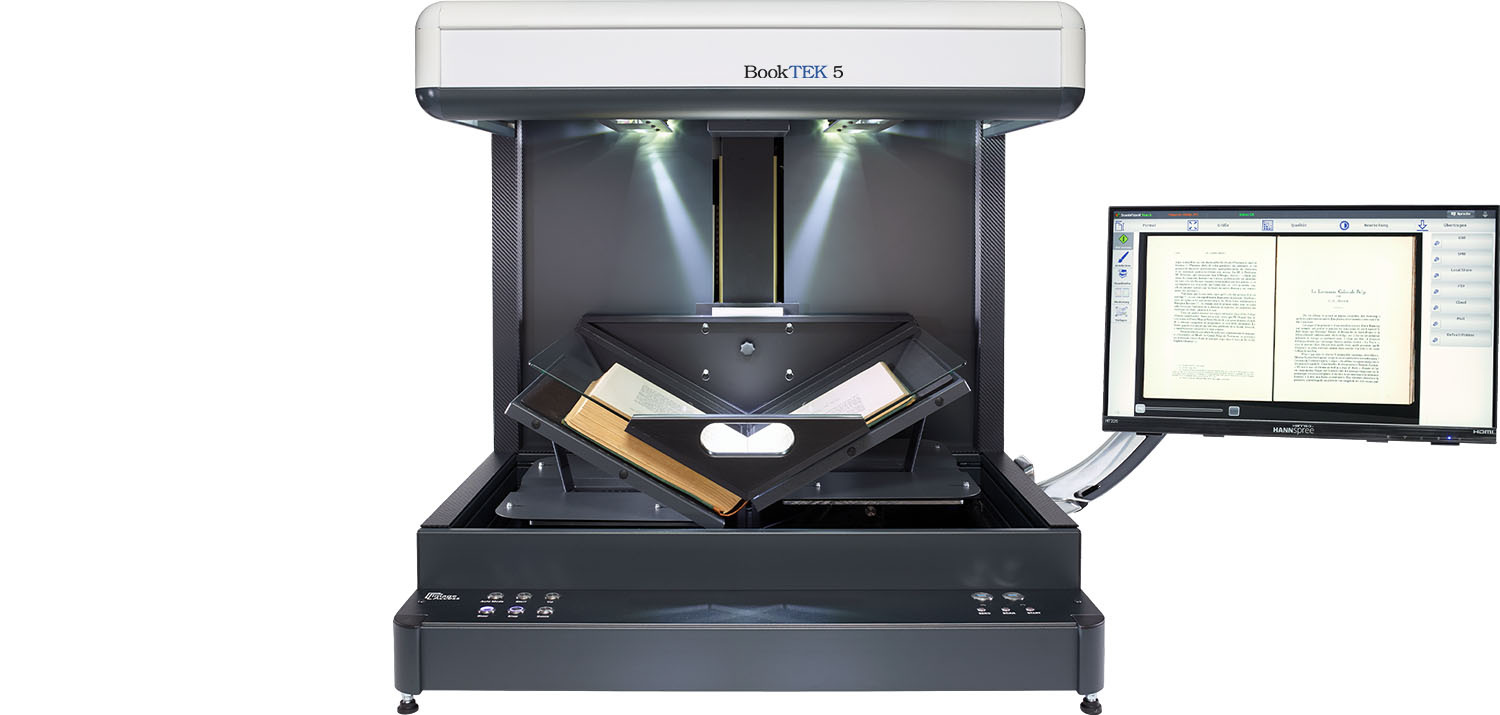

Motorized glass plate
The motorized glass plate ensures distortion-free scans while protecting the book binding. Its balanced design enables effortless scanning without physical strain. For precise alignment with the book fold, the glass plate can be adjusted horizontally.
Software solutions for production scanning
A high-performance production scanner relies on robust capture software. Image Access offers powerful software solutions for the BookTEK 5 V2 Semiautomatic, designed to streamline and optimize high-volume digitization projects.

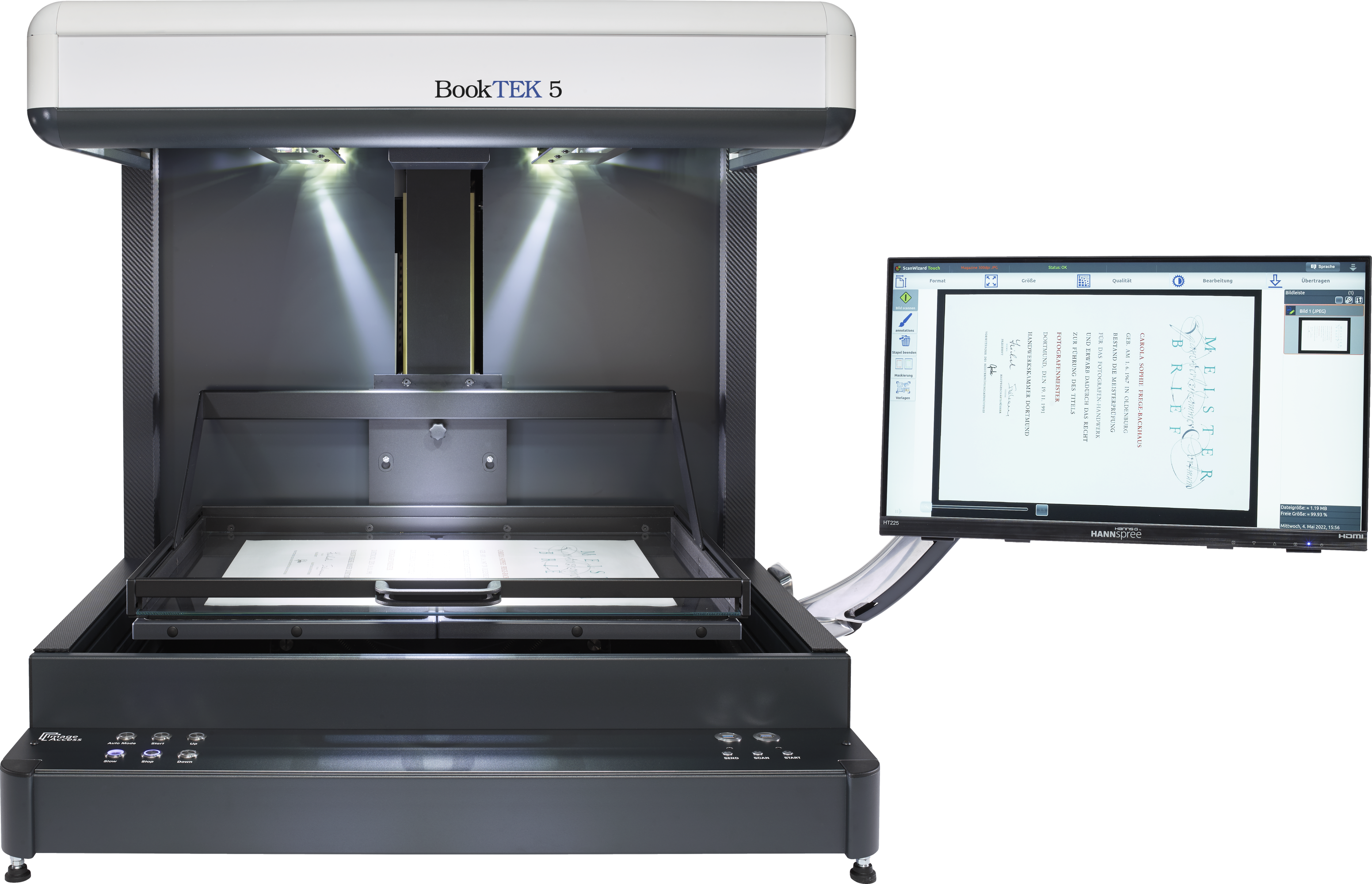

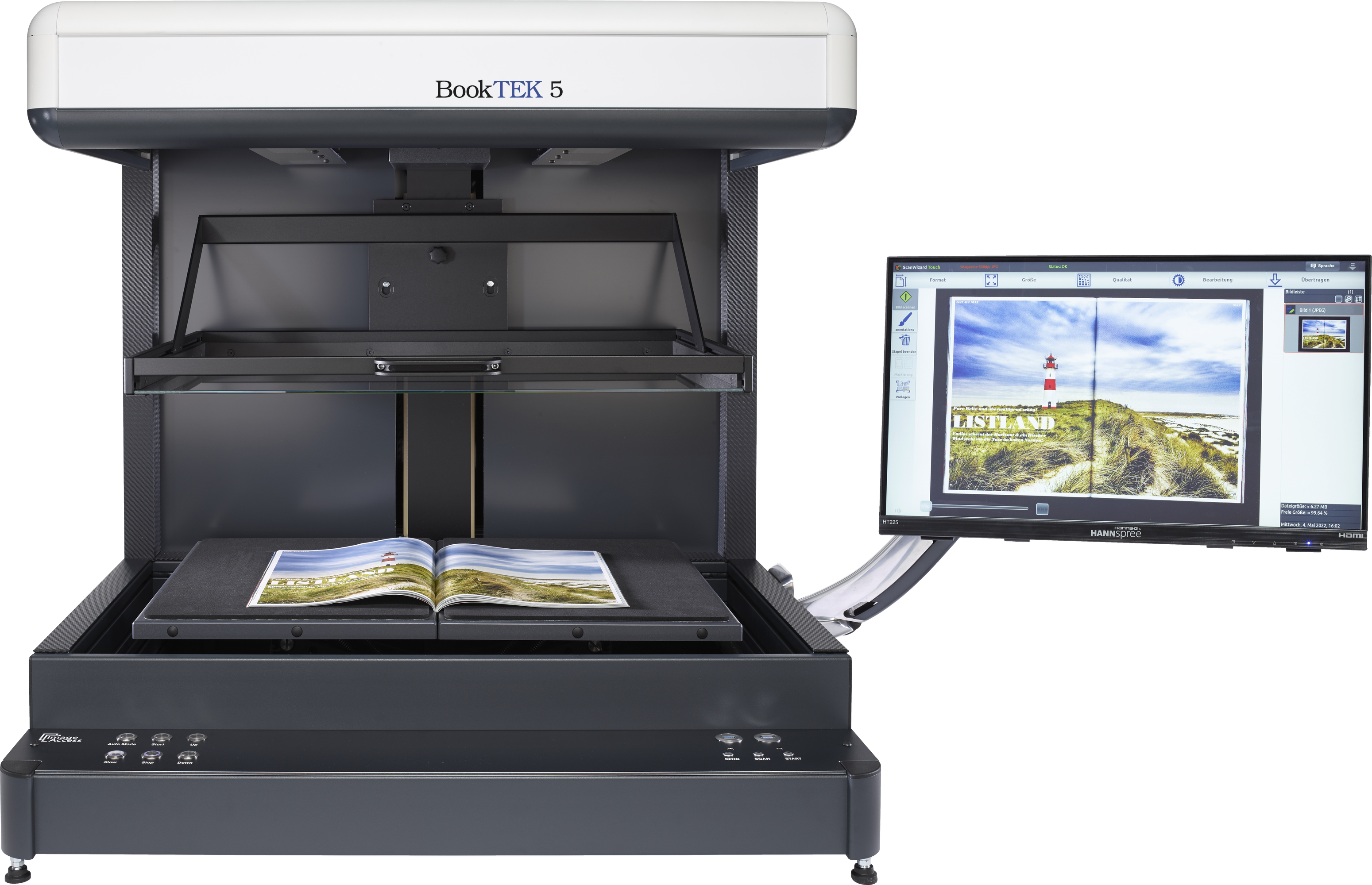

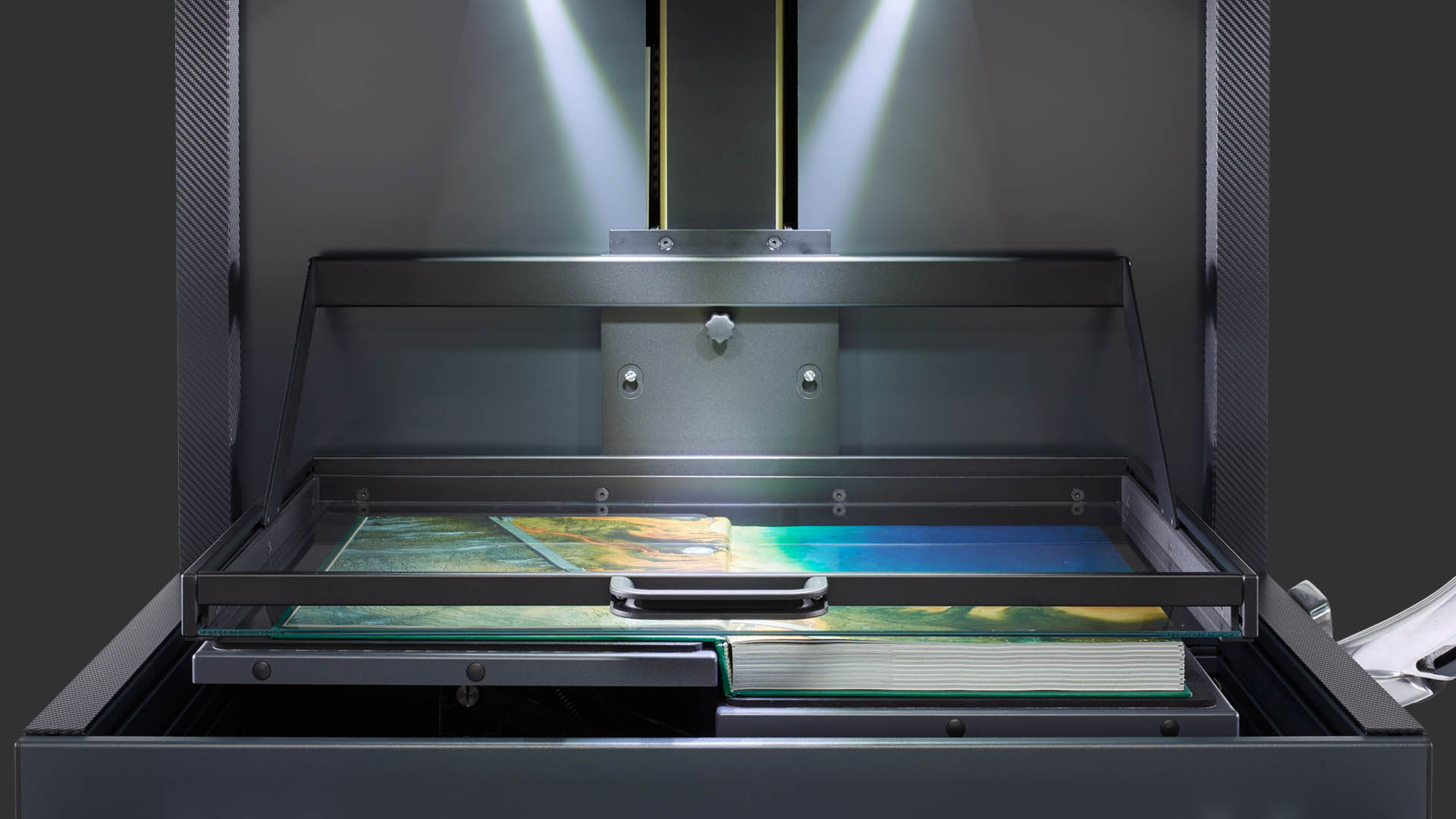

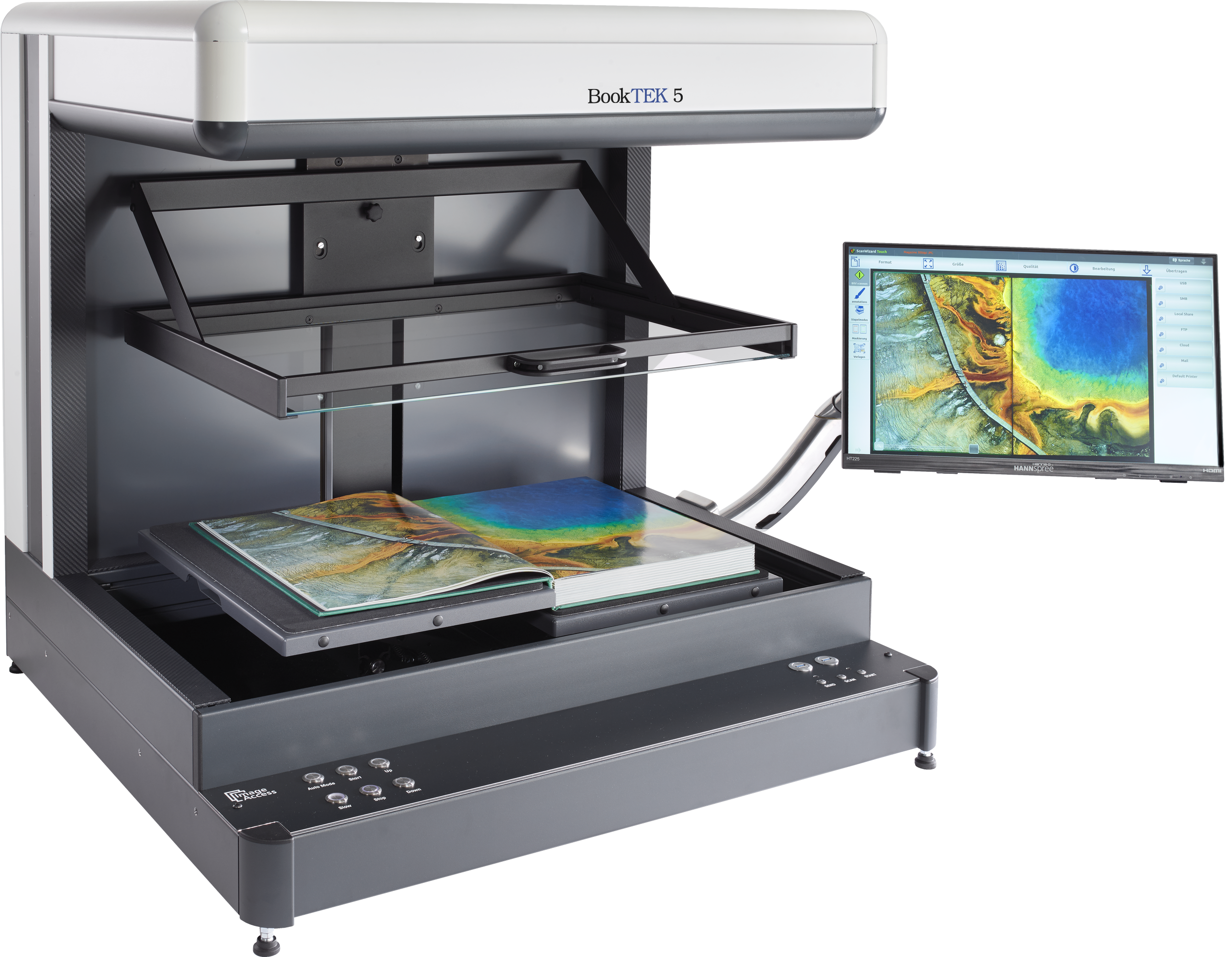

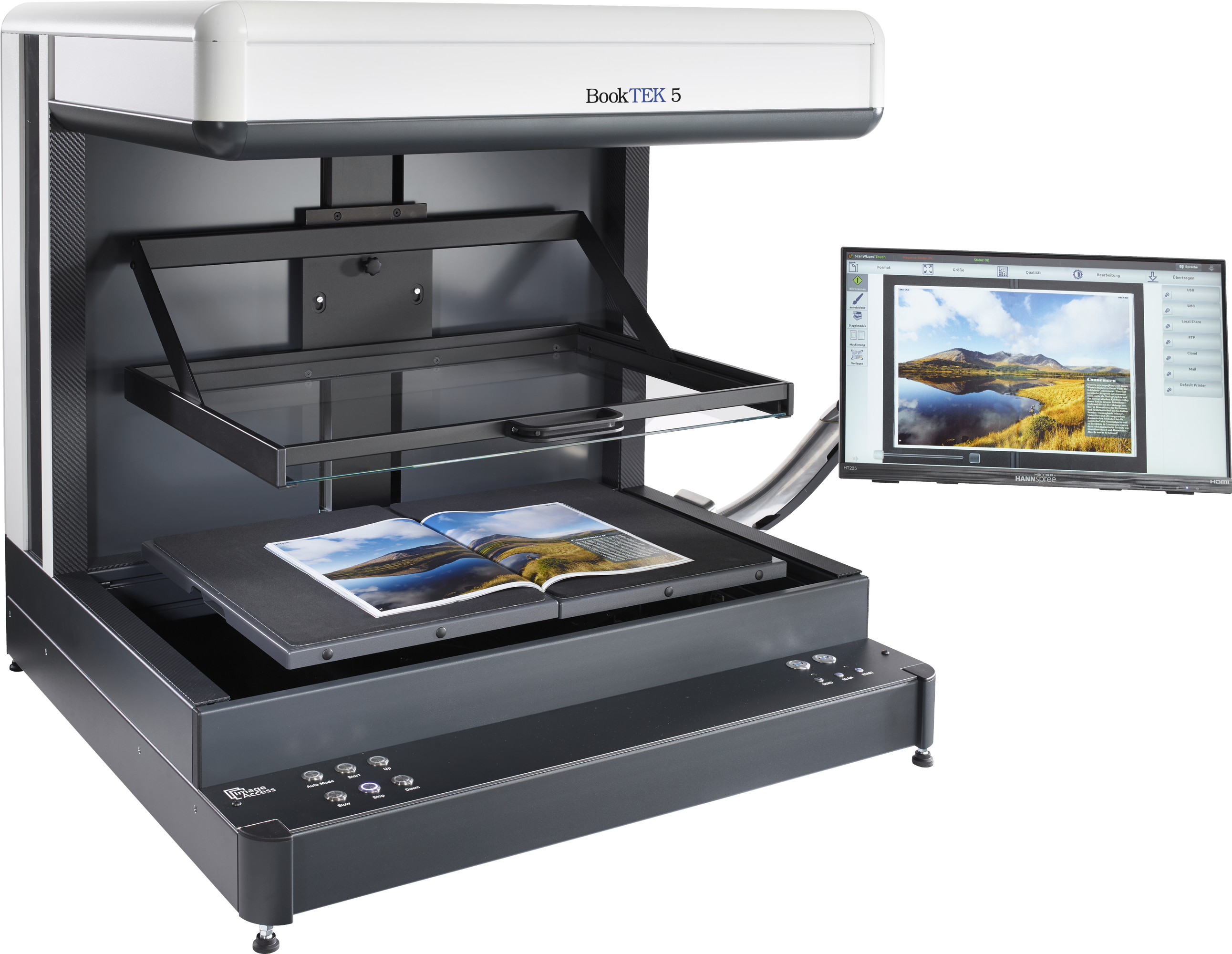

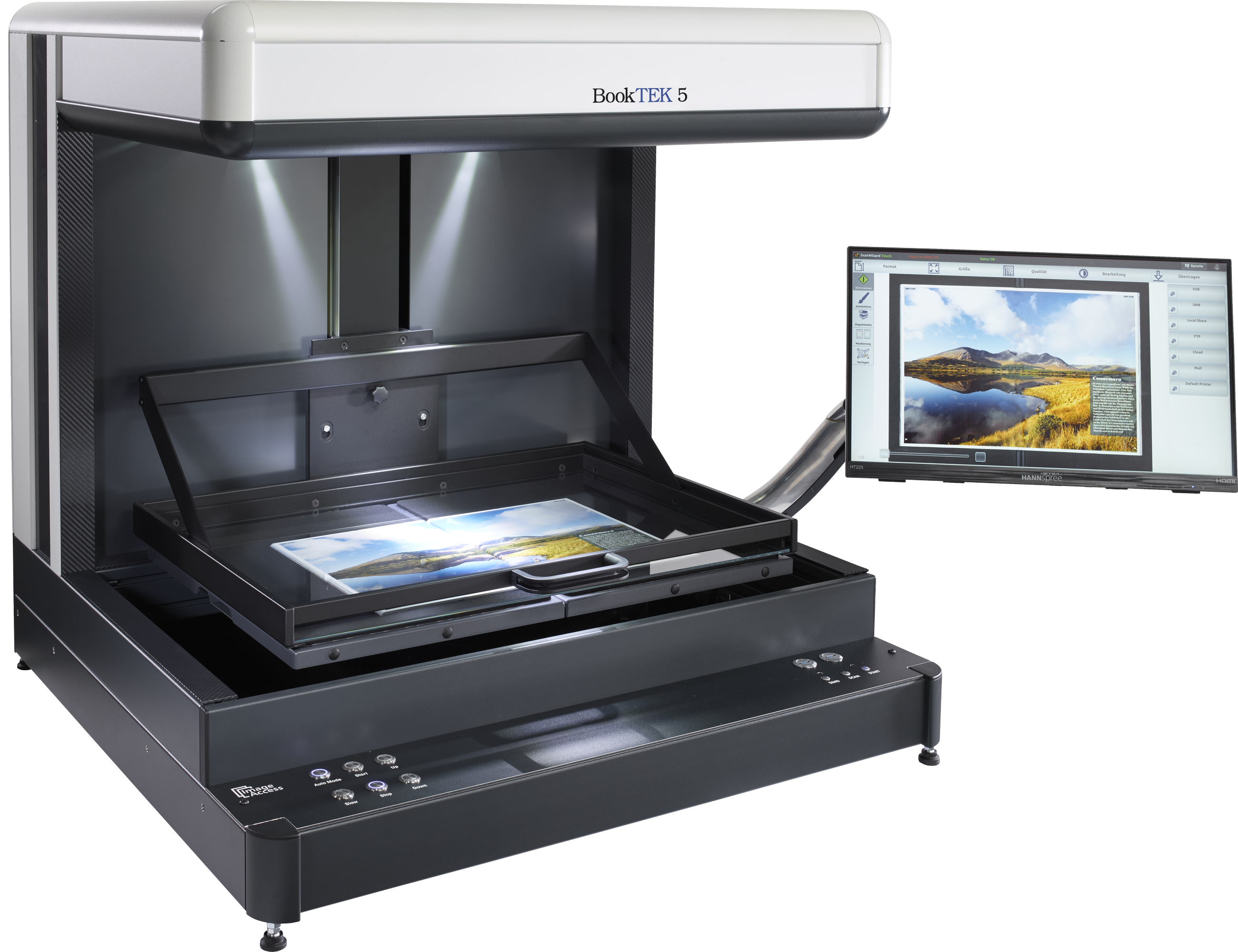

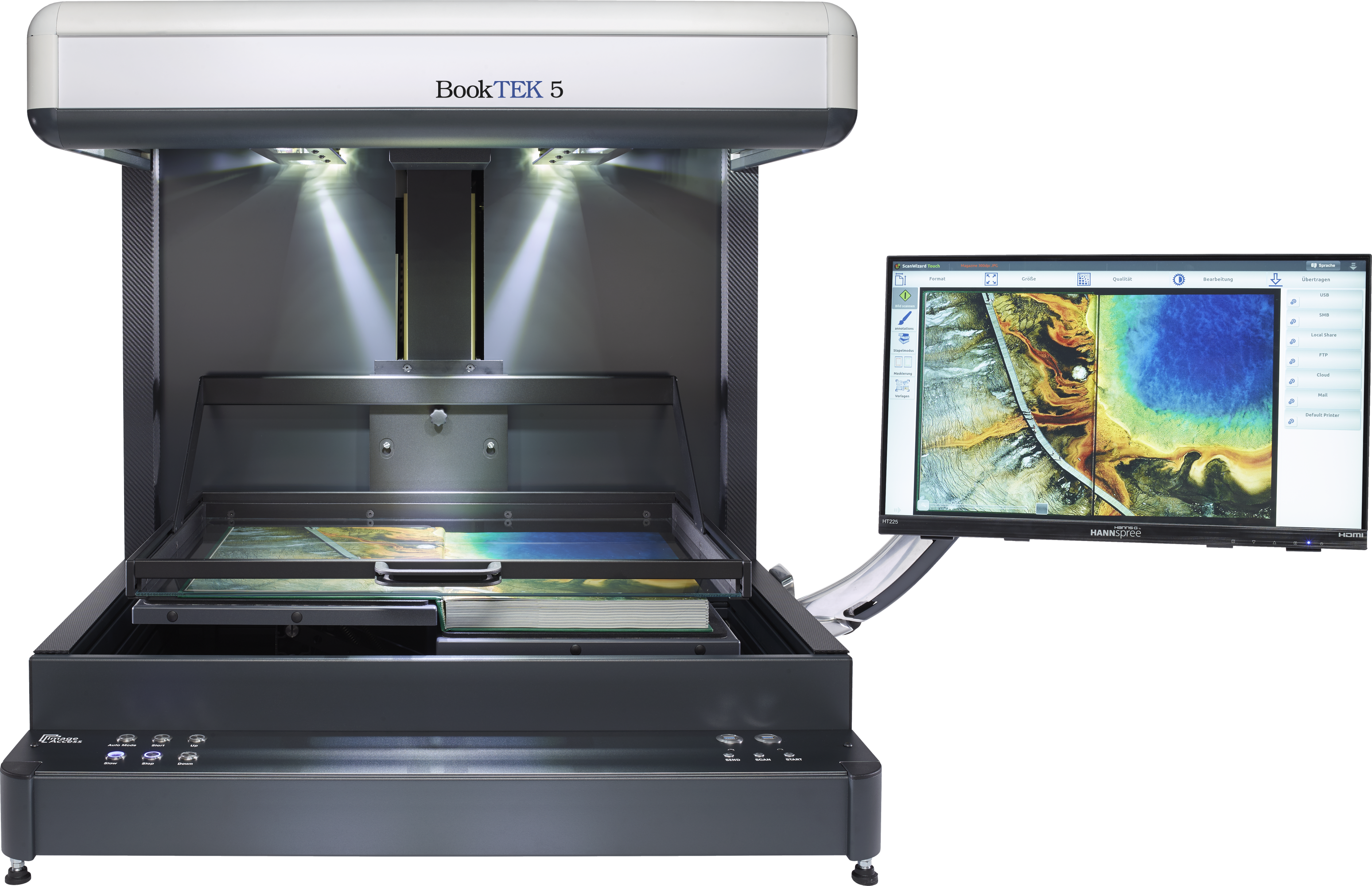

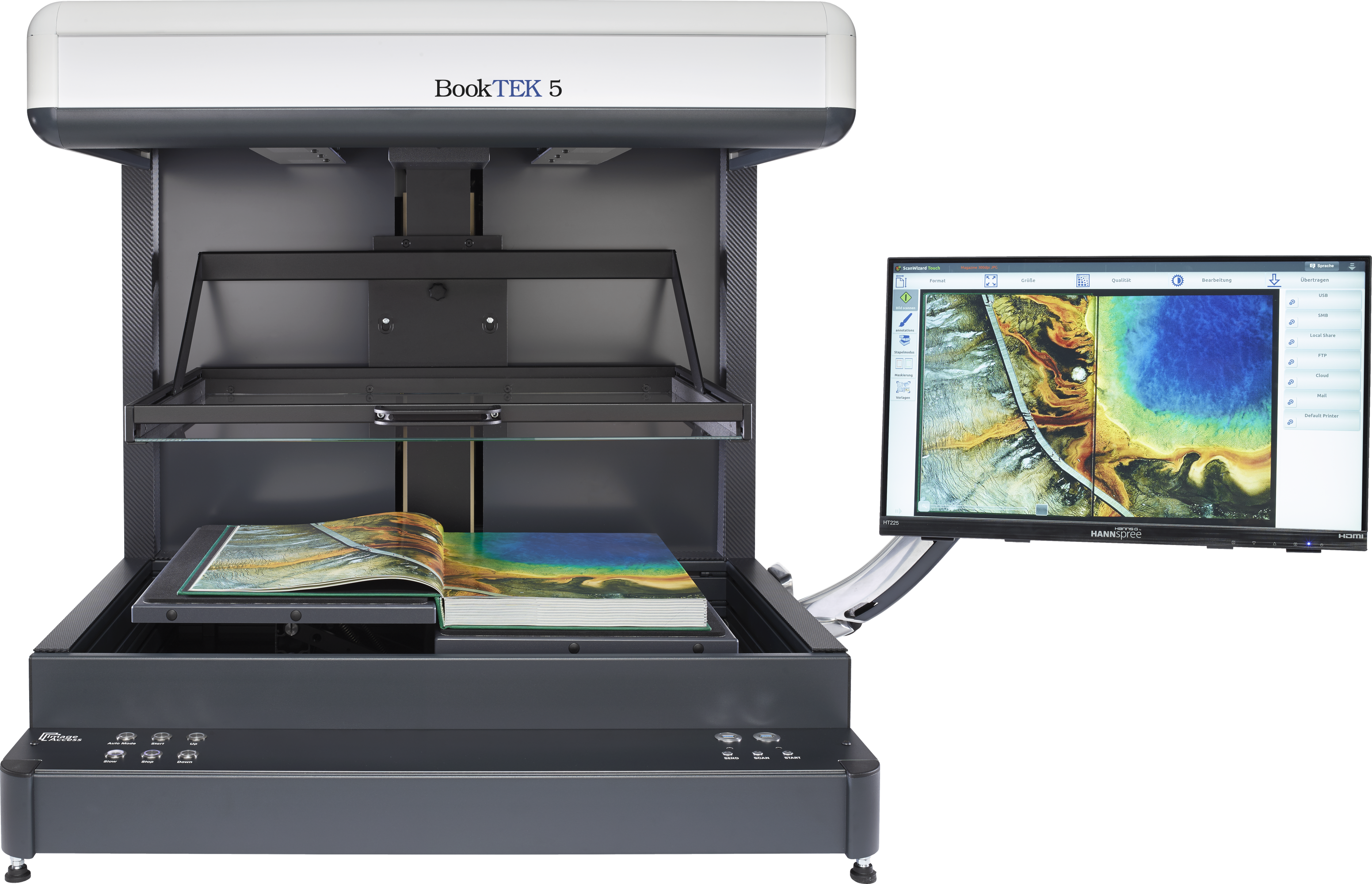

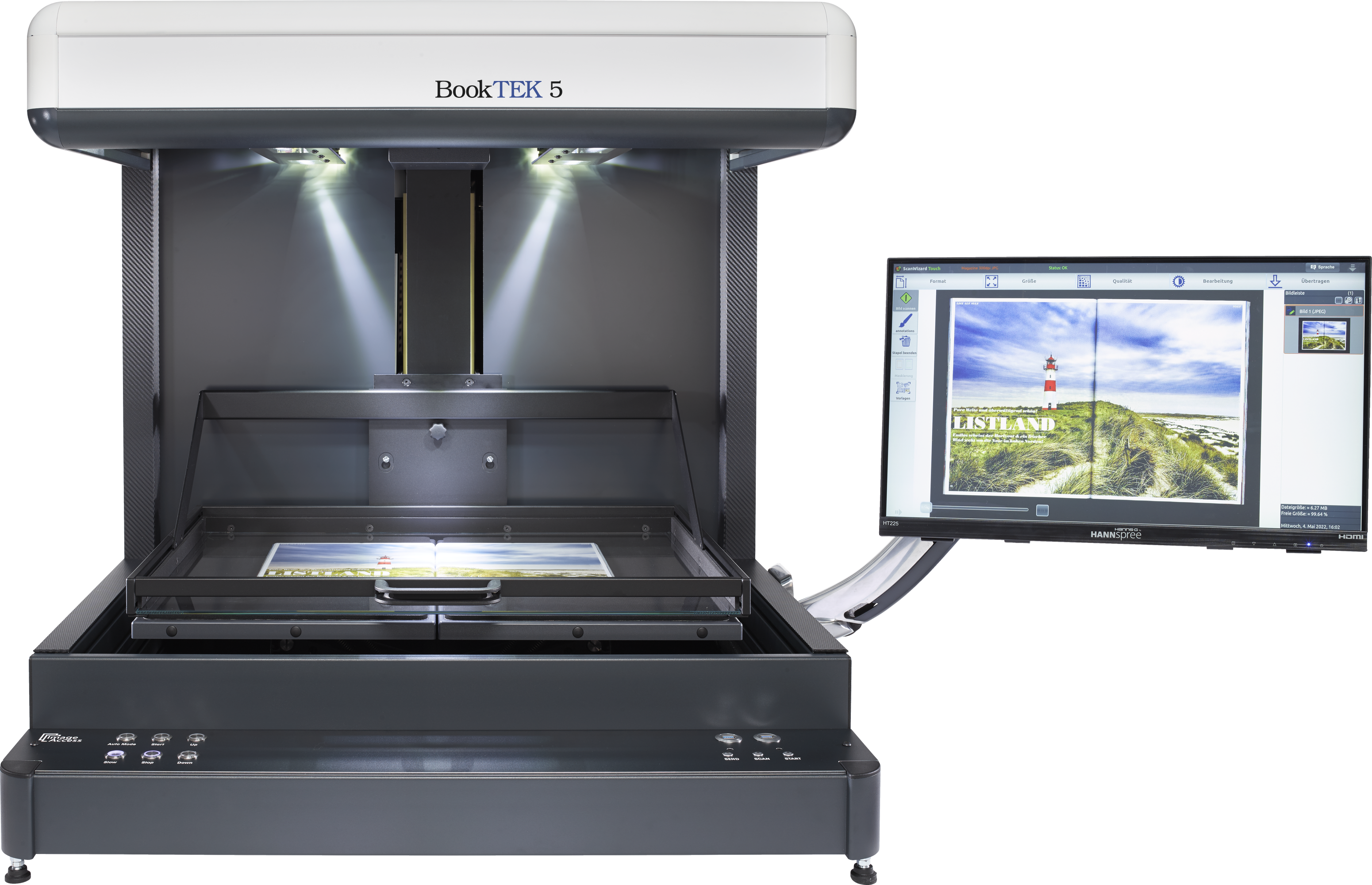

Choose your glass plate
Flat glass plate or V-shaped glass plate: Whether it is a book, certificate or newspaper, the document is digitized gently.
Legal Information
03/2026
Technical Specification BE5-V2S
04/2025
Setup Instructions BE5-V2S
03/2025
Instruction Scan2ICC
09/2021
Declaration about the Emission of UV and IR radiation
11/2021
Book Scanner Buyer´s Guide
02/2021
Product Brochure BE5-V2S
04/2025
Product Brochure Scan2Net®
09/2022
Fact Sheet BE5-V2S (Coming soon)
-
var(--.--.--
)
Maximum Documents Size
460 x 620 mm (18 x 24 inch), 14% more than DIN/ISO A2
Scanner Resolution
600 x 600 dpi
Pixel Dimension
9.3 x 9.3 µm
Scan Speed Color
DIN A2+ @ 150 dpi: 0.9 s
DIN A2+ @ 200 dpi: 1.1 s
DIN A2+ @ 300 dpi: 1.6 s
DIN A2+ @ 400 dpi: 2.0 s
DIN A2+ @ 600 dpi: 3.0 s
Color Depth
48 bit color, 16 bit grayscale
Scan Output
24 bit color, 8 bit grayscale, bitonal, enhanced halftone
ICC Profiles
Embedded for sRGB, Adobe RGB and native. Individual profiling via web based Scan2ICC subscription
Quality
Complies to FADGI *** guidelines, Metamorfoze Light, ISO 19264-1
Computer
64 bit Linux, Intel Core i3 generation 8 processor, 240GB SSD, 8 GB memory for extra large jobs
Touchscreen
21 inch Full HD 1920 * 1080 multitouch screen
USB Port
2 x USB 3.0 port, 4 x USB 2.0 port
Interface
2.5 GBit Fast Ethernet with TCP/IP based Scan2Net® interface
Camera
CCD line sensor, 22,500 pixels (11,000 scan lines equals to a 245 MPixel matrix camera)
Live Preview Camera
CMOS matrix, area sensor
Light Source
White LEDs, tested according to IEC 62471, no IR/UV emission
Declaration about the Emission of UV and IR radiation
Lamp Lifetime
50,000 h typ. Lamps are covered by the Extended Warranty Option
Dimensions Scanner (H x W x D)
880 x 1000 x 850 mm (35 x 39 x 33 inch)
without monitor
Weight Scanner
105 kg (231 lbs.)
Electrical Connection
100-240 V AC, 47 – 63 Hz (external power supply, complies with ECO standard CEC level VI)
Power Consumption
16.5 W (Standby) / < 75 W (Ready to scan) / 150 W (Scanning) / 150 W (Fully automatic scan cycle)
ENERGY STAR requirements
Image Access FAQ
Operating Temp
5 to 40 °C (40 to 105 °F)
Rel Humidity
20 to 80% (non-condensing)
Noise
< 56 dB(A) (Fully automatic scan cycle) / < 40 dB(A) (Scanning) / < 33 dB(A) (Standby)
Technical changes, errors and omissions excepted. All information subject to change.
