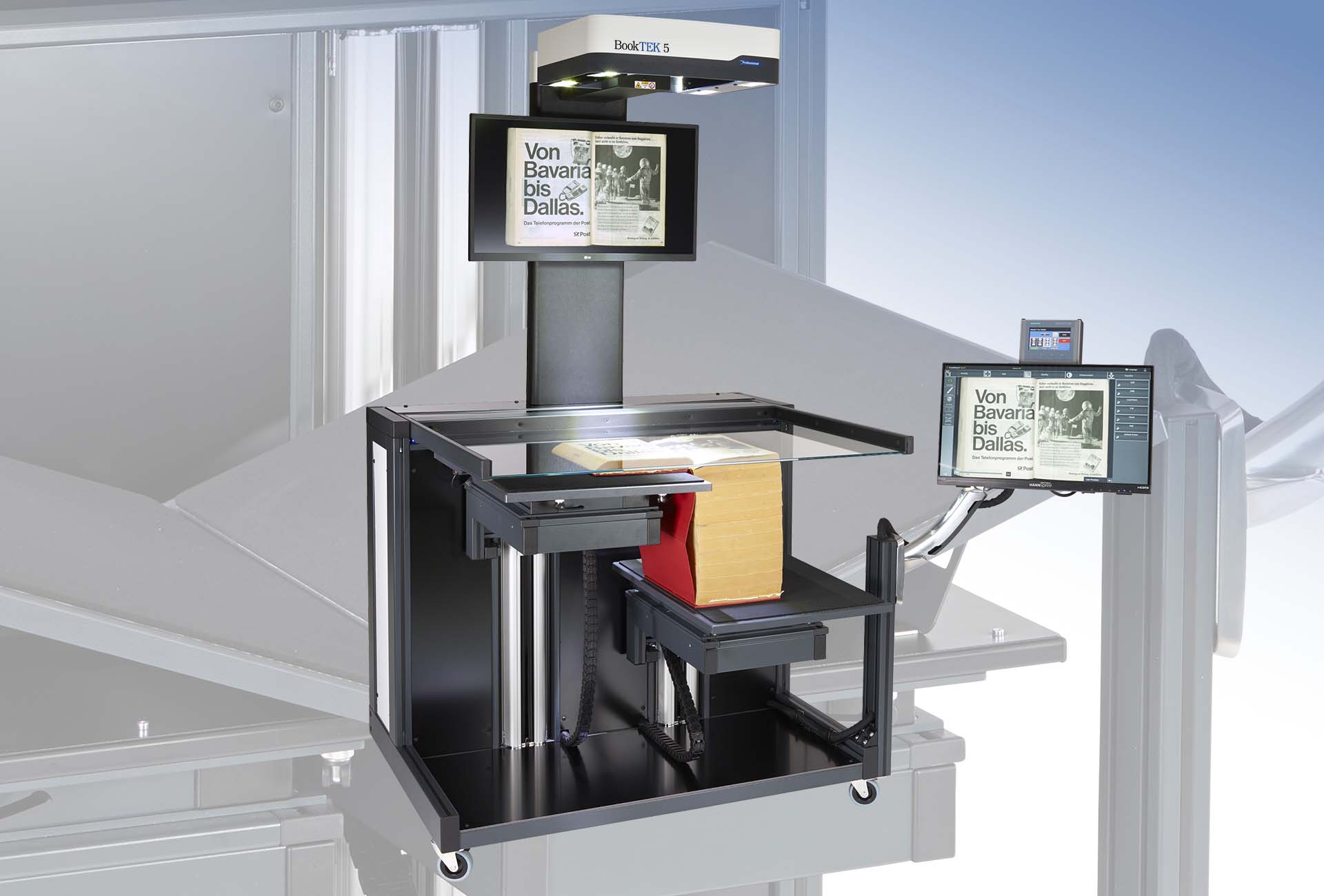

BookTEK 5 V1A-C50
BookTEK 5 V1A-C50 is the wide format book scanner of choice for digitization projects which require formats more than DINA1+ with a thickness of up to 50cm
High-performance scanning for oversized originals
The BookTEK 5 V1A-C50 is designed for demanding digitization projects, combining speed, precision, and ease of use. Capable of handling originals up to A1 size and book thicknesses of 35 or 50 cm, this scanner streamlines workflows with its motorized glass plate and versatile book cradle. Whether working in fixed, glass-free, or fully automatic modes, this scanner delivers exceptional image quality for even the most challenging tasks.
Digitization in brilliant quality
A high-resolution linear CCD camera with laser-controlled autofocus precisely follows the curvature of books, scanning along the reading direction.
Even at 600 dpi with all image enhancements activated, scanning takes only 4 seconds, and the complete cycle time, including all glass plate movements, is under 8 seconds.

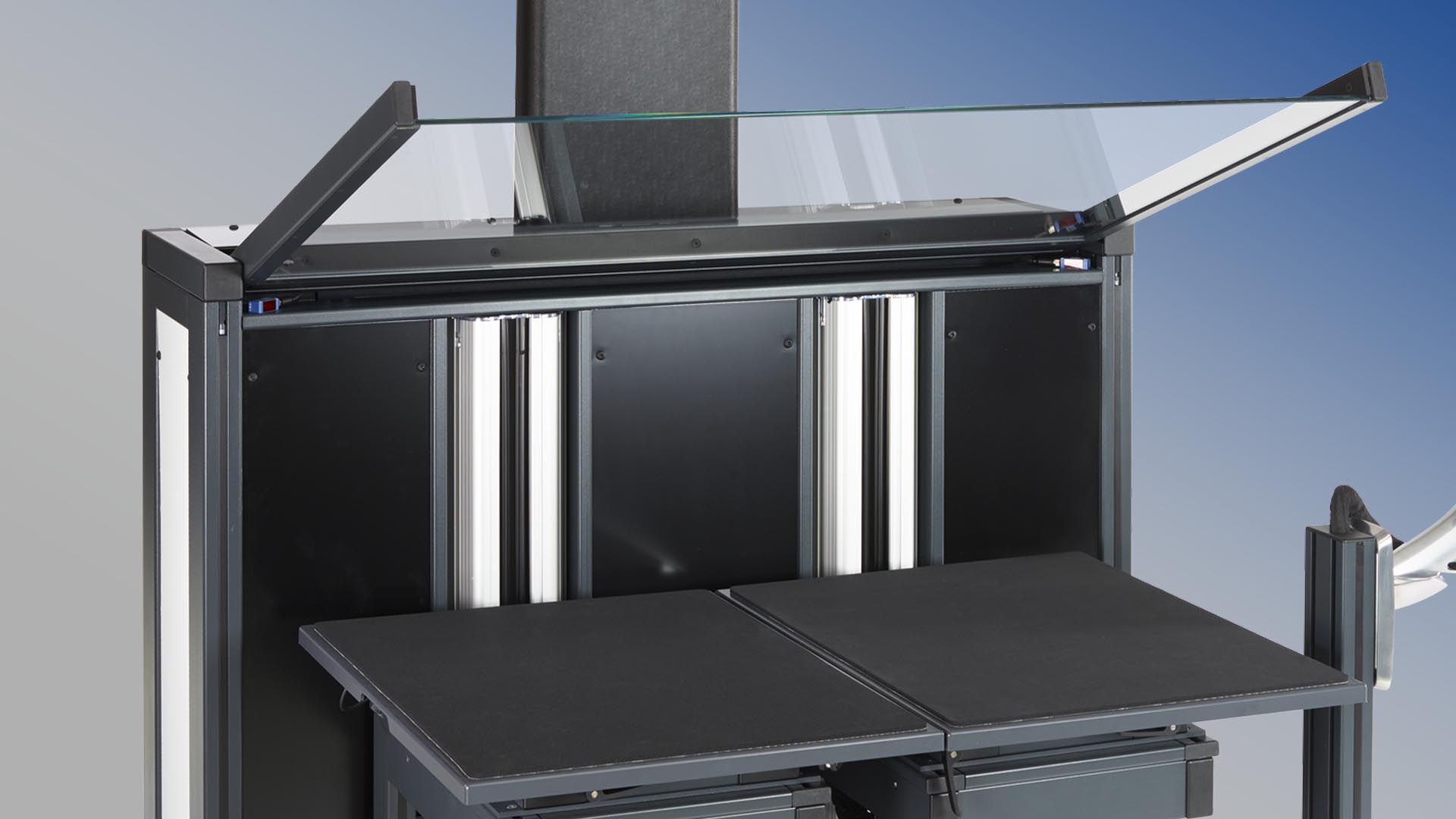

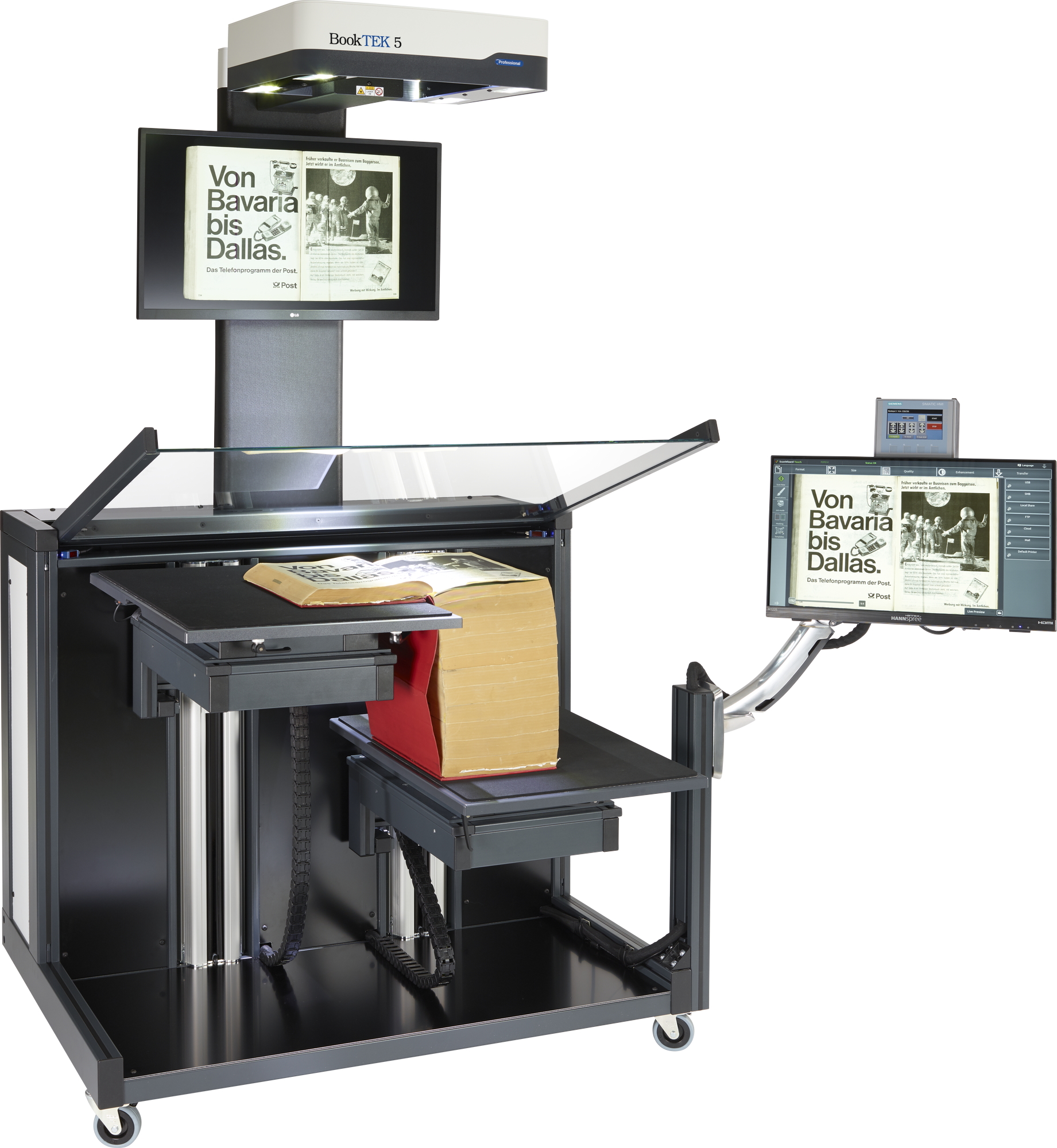

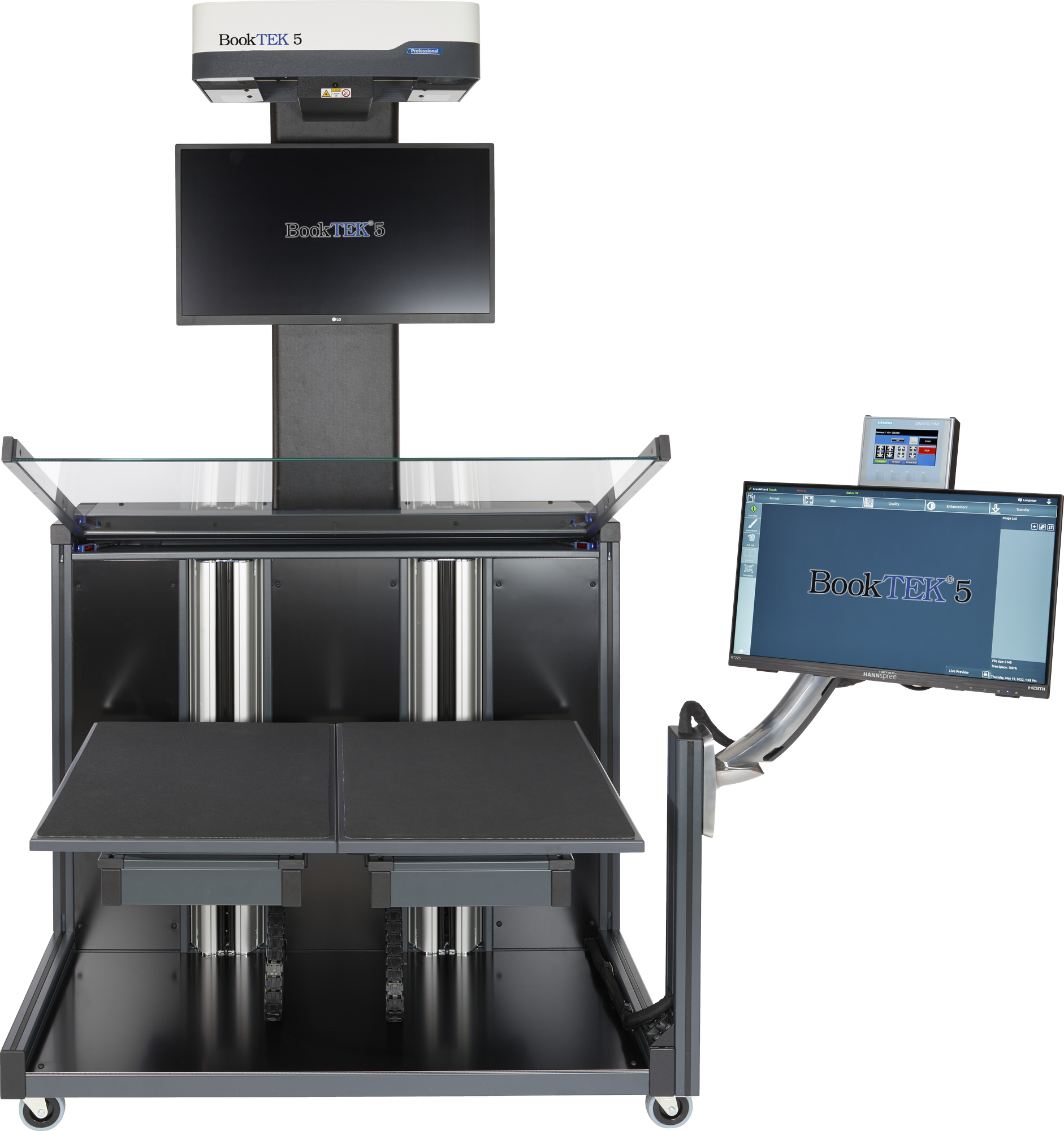

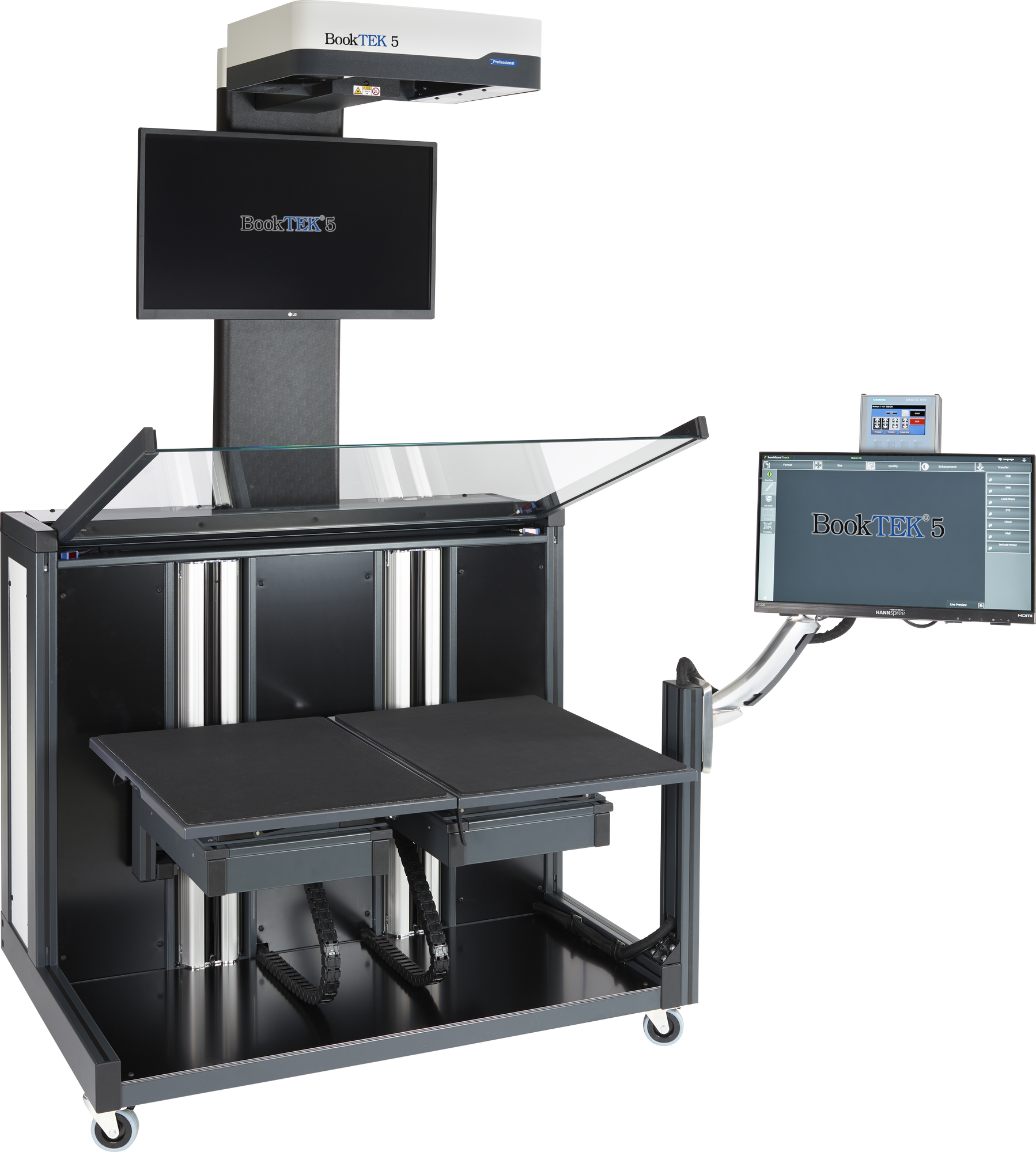

Motorized glass plate
The BookTEK 5 V1A-C50 features a motorized, adjustable glass plate. Its automated movements streamline the scanning process, gently lowering onto the book to apply just the right amount of pressure for high-quality scans without damaging delicate pages.

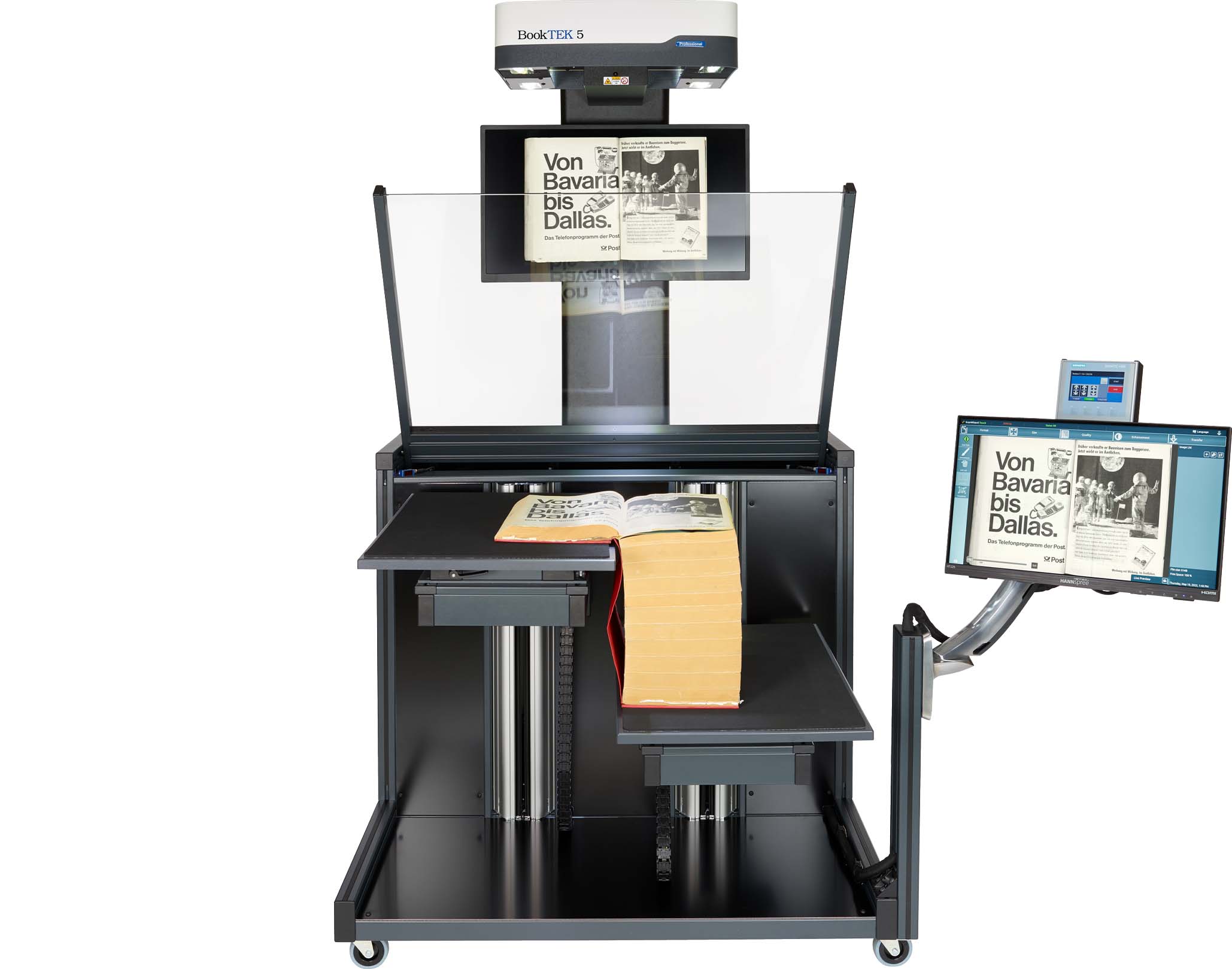

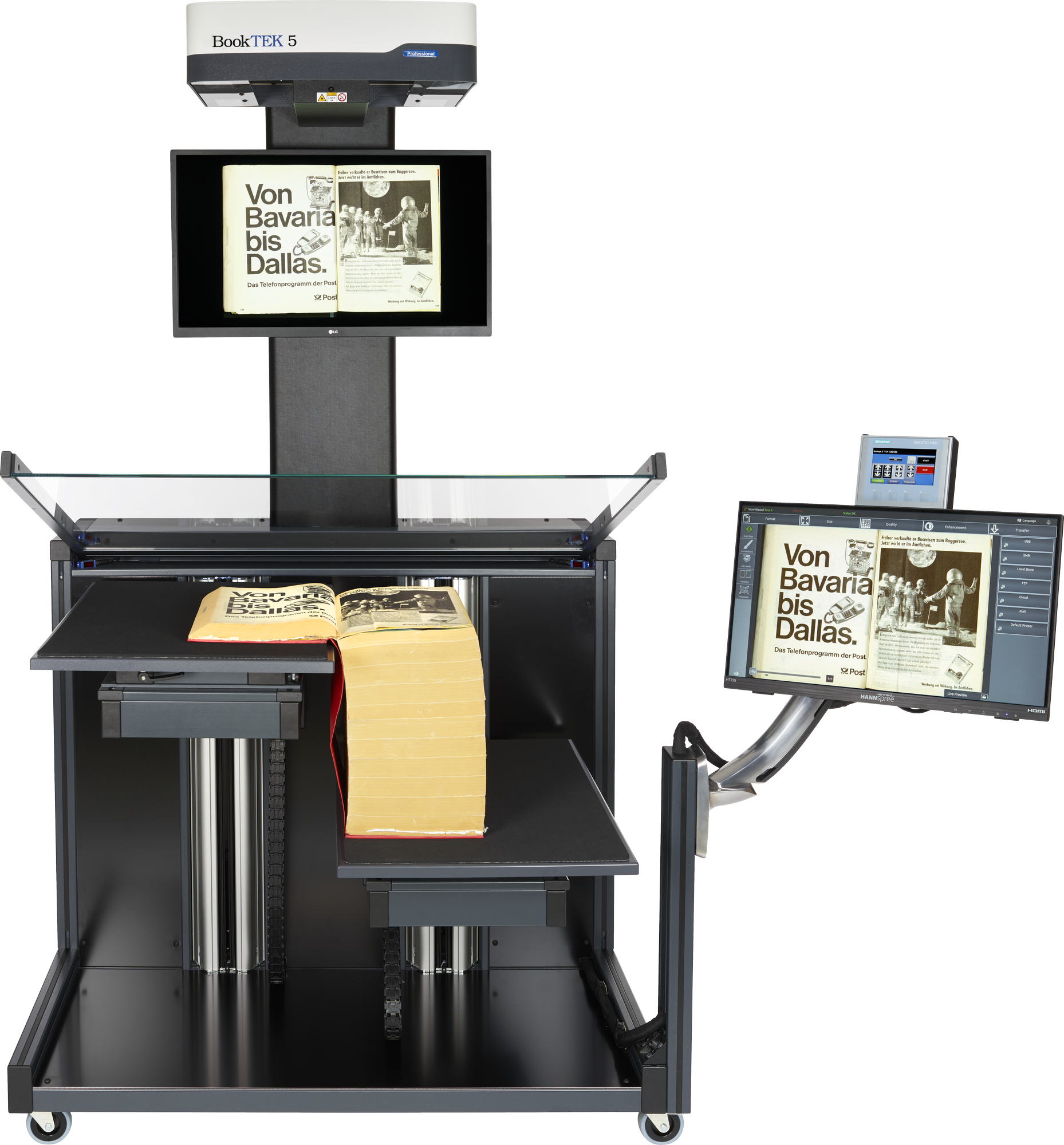

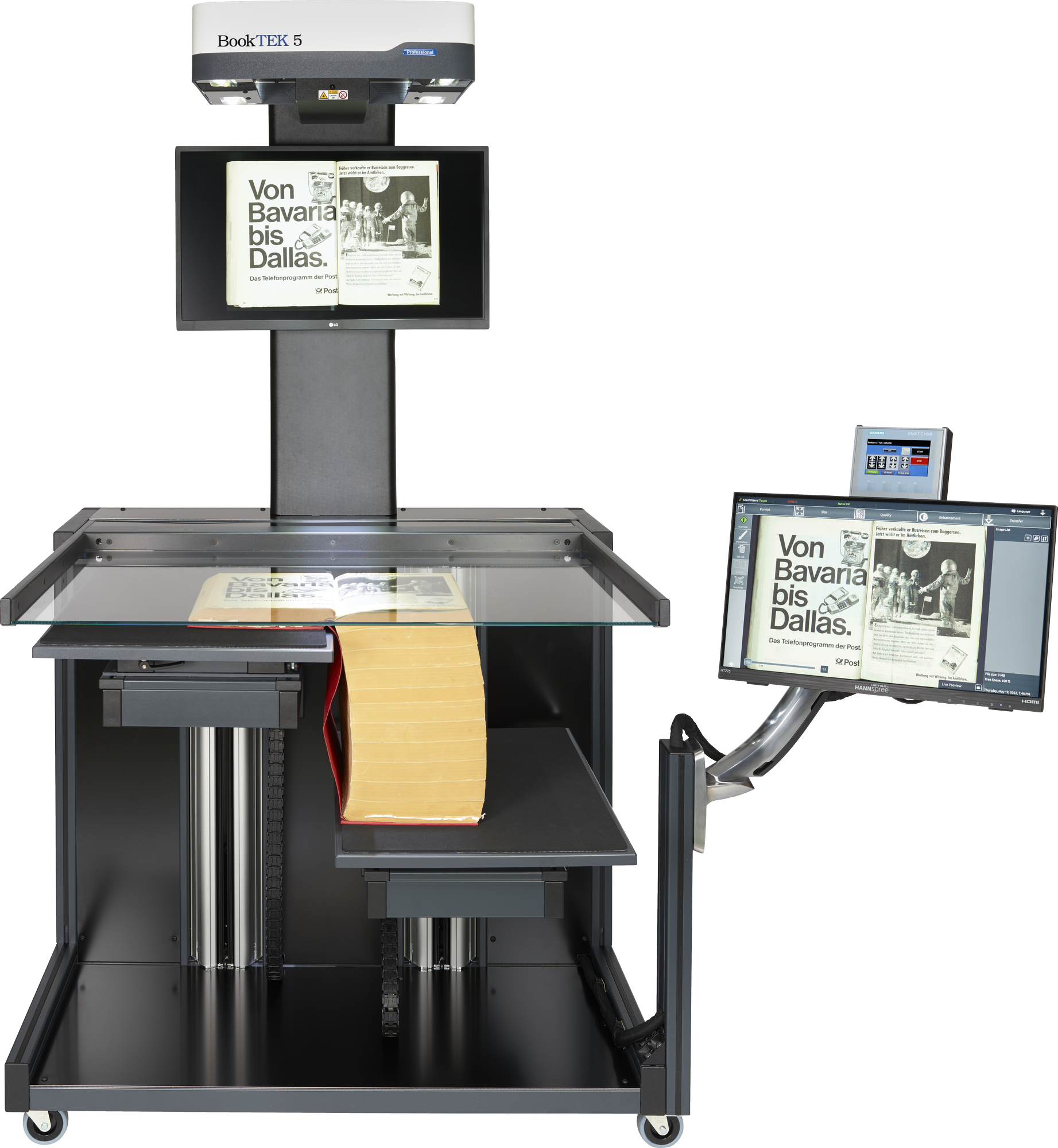

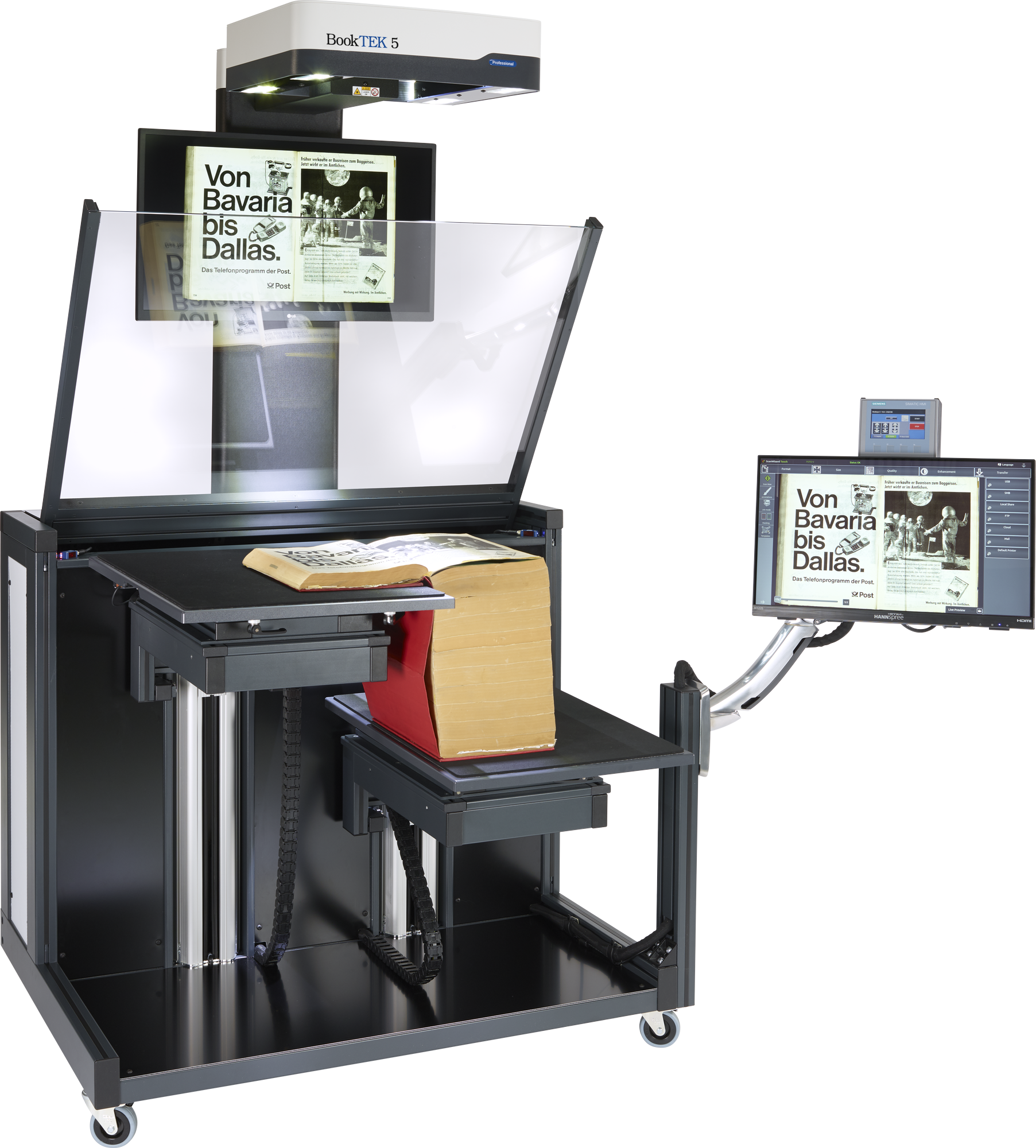

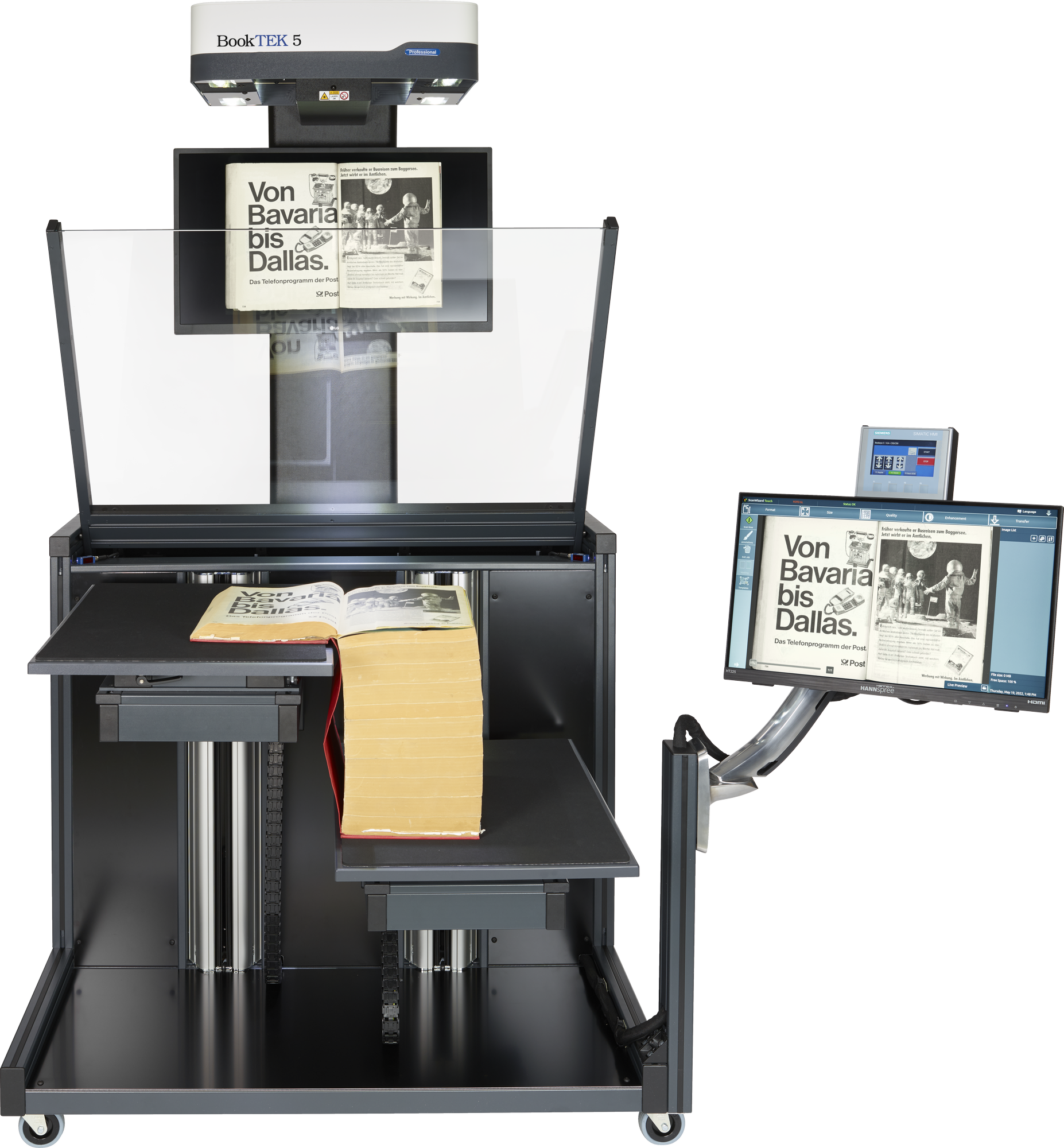

Advanced book cradle design

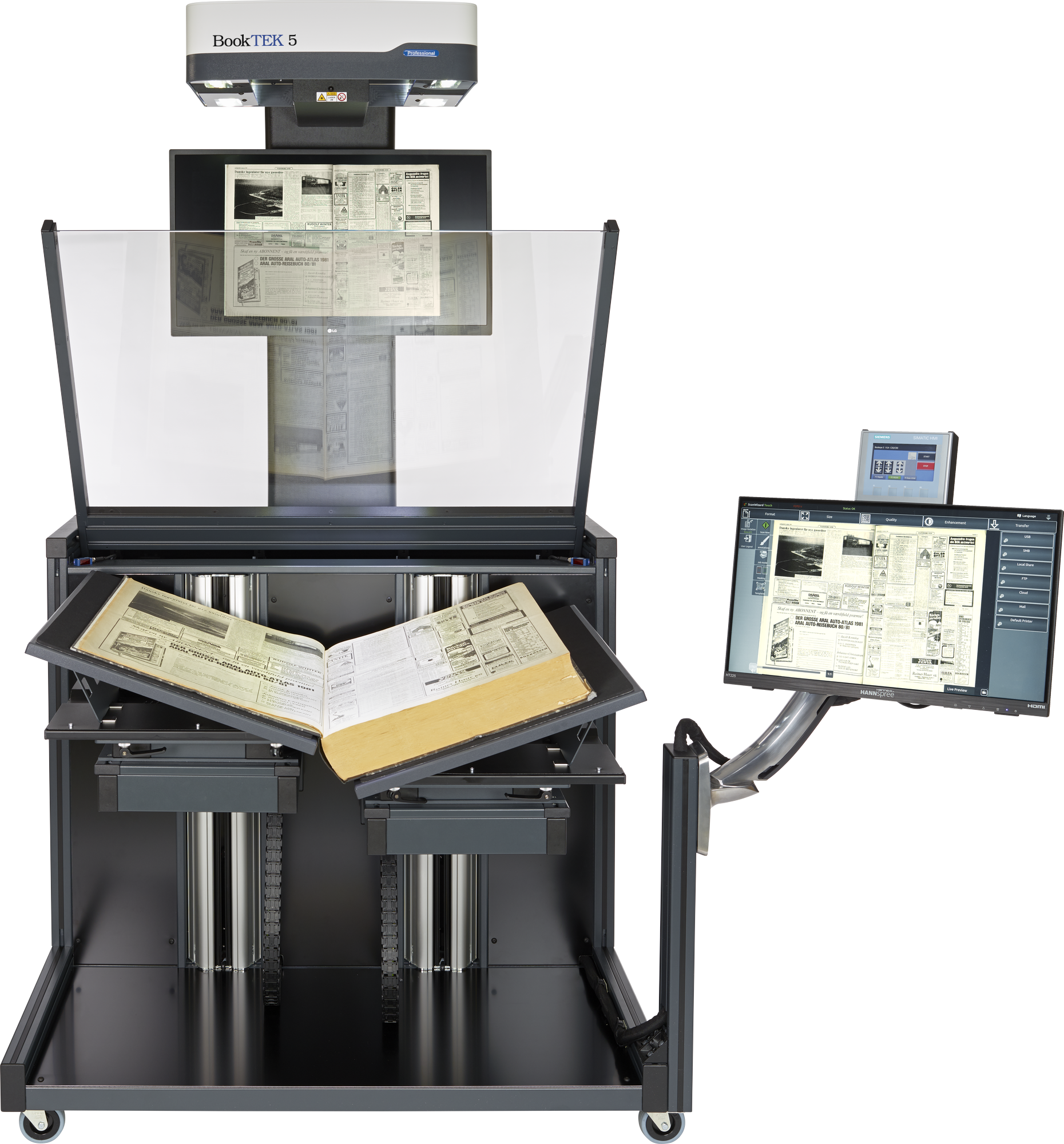

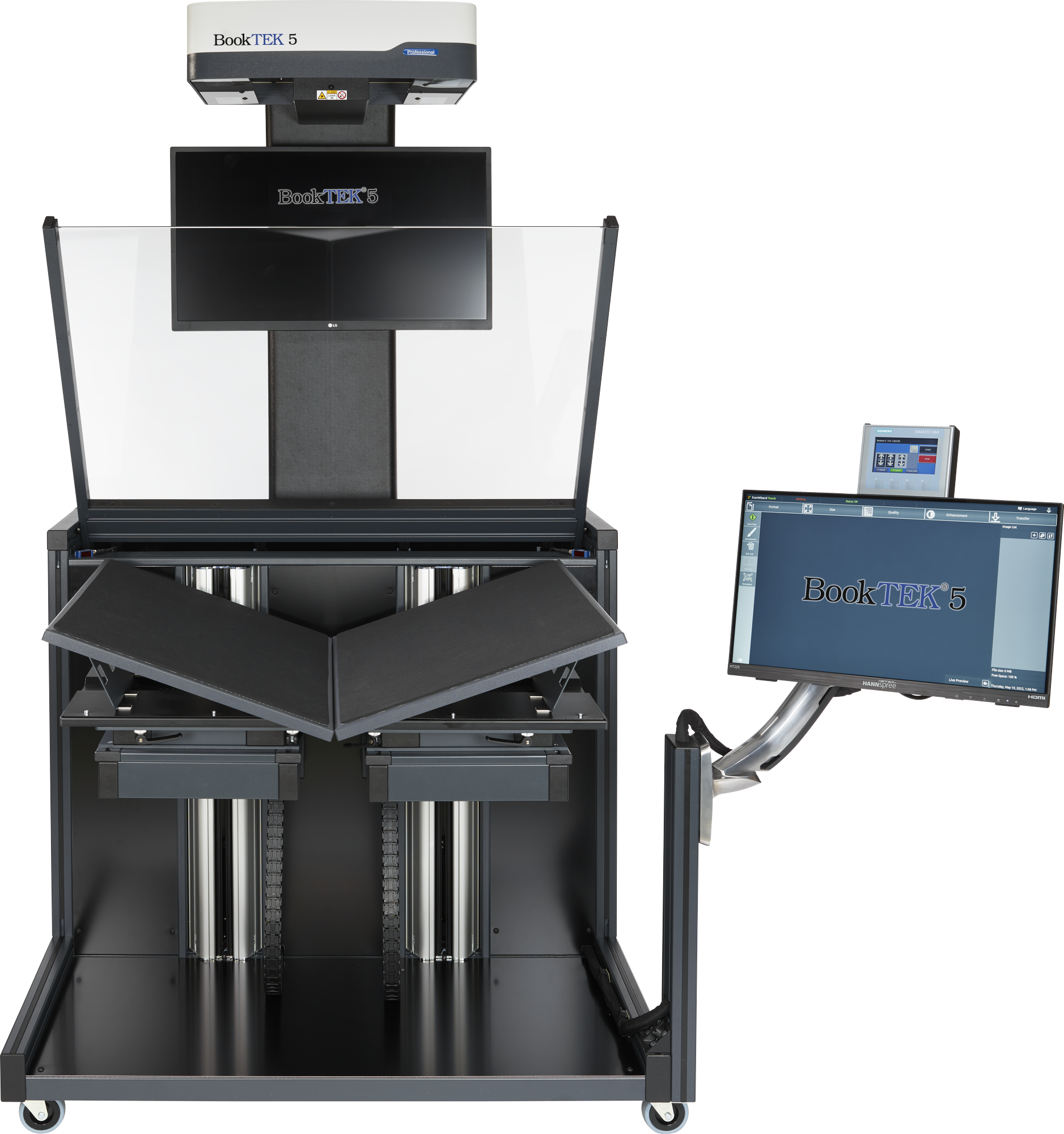

The motor-driven book cradle handles books up to 35 cm high, with an optional upgrade to 50 cm, making it perfect for digitizing standard and oversized materials. Operators can easily switch between flat mode for open books and V-mode with a 140° opening angle to protect delicate spines and bindings.

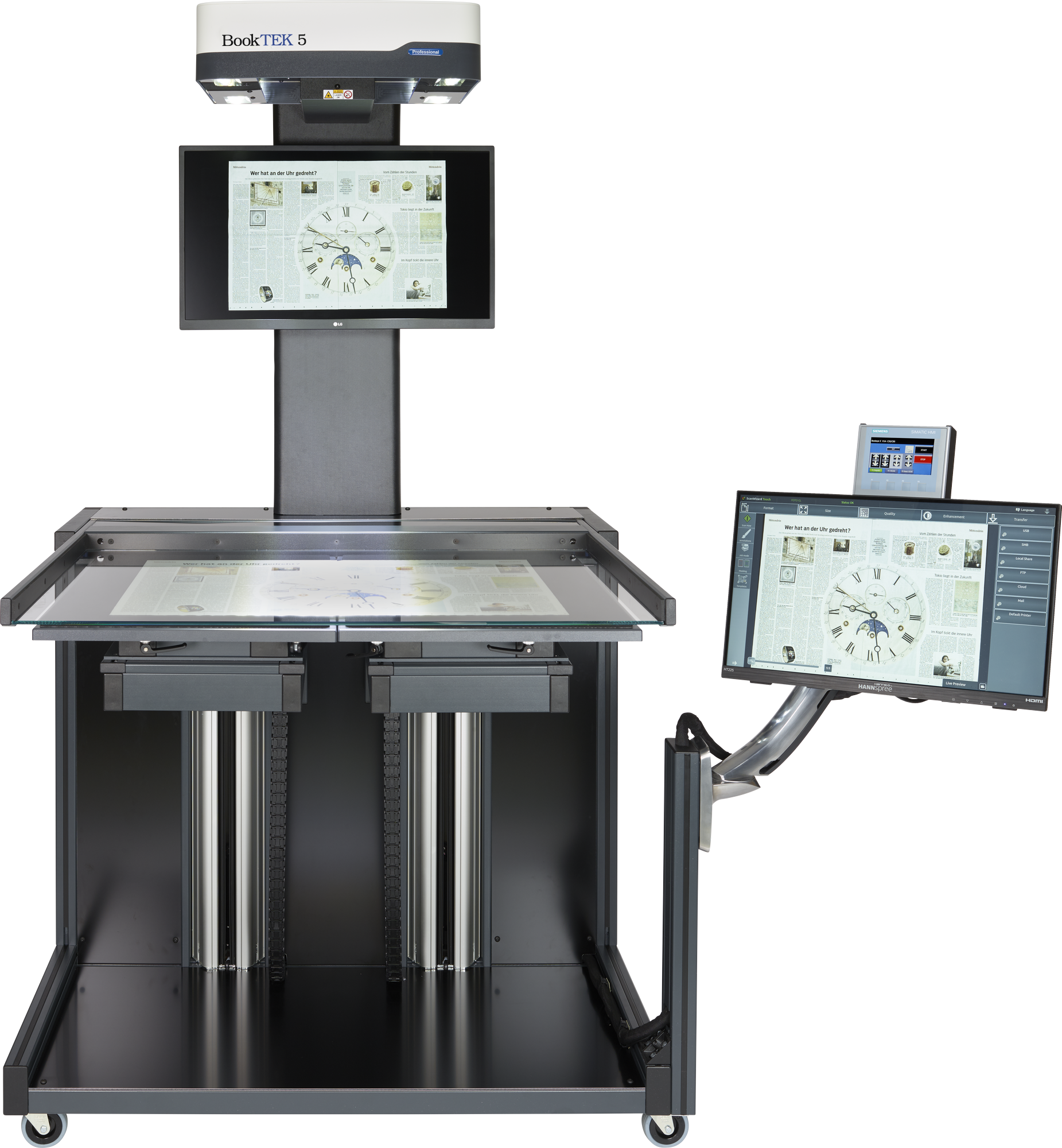

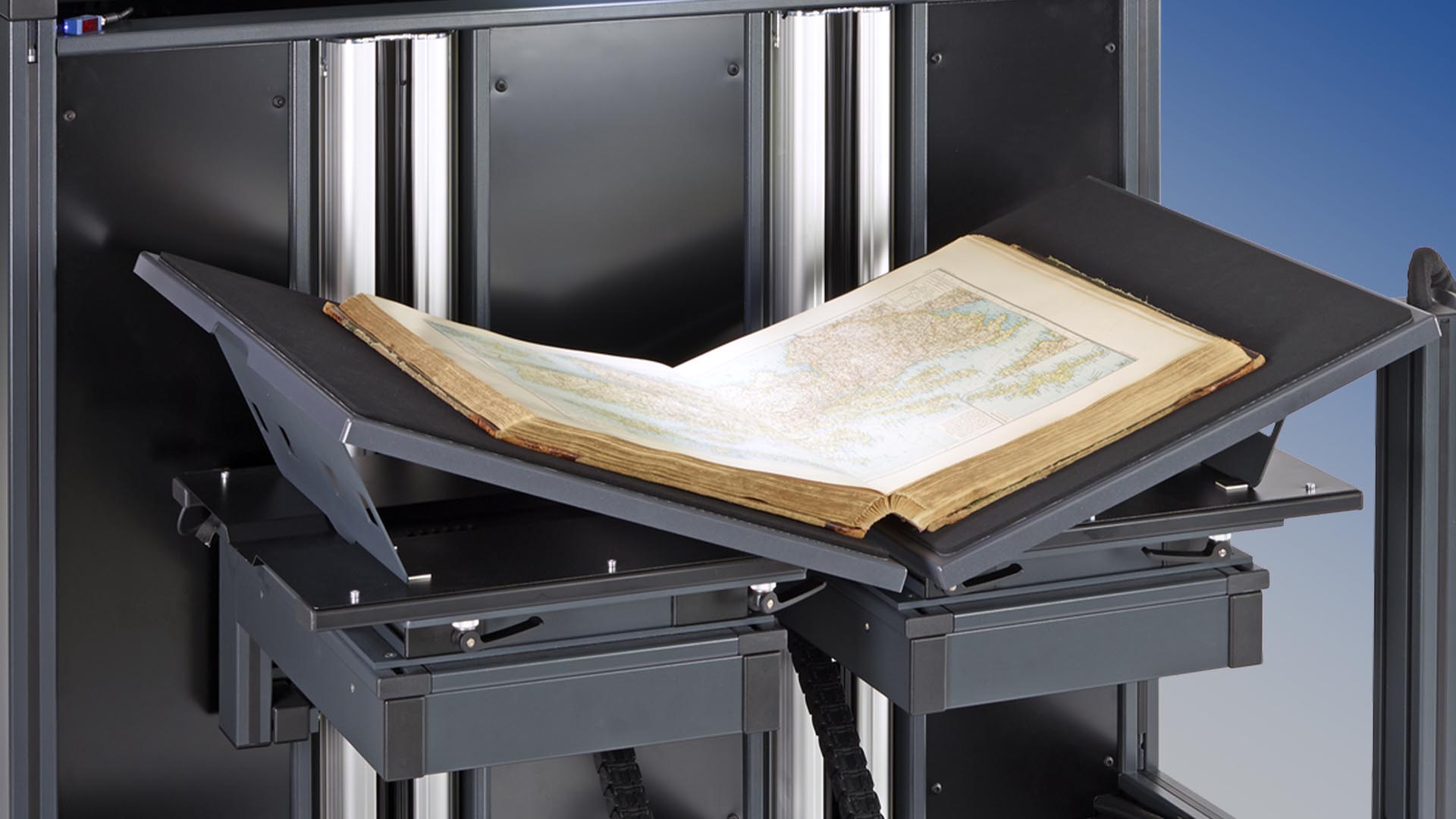

Predefined book cradle modes

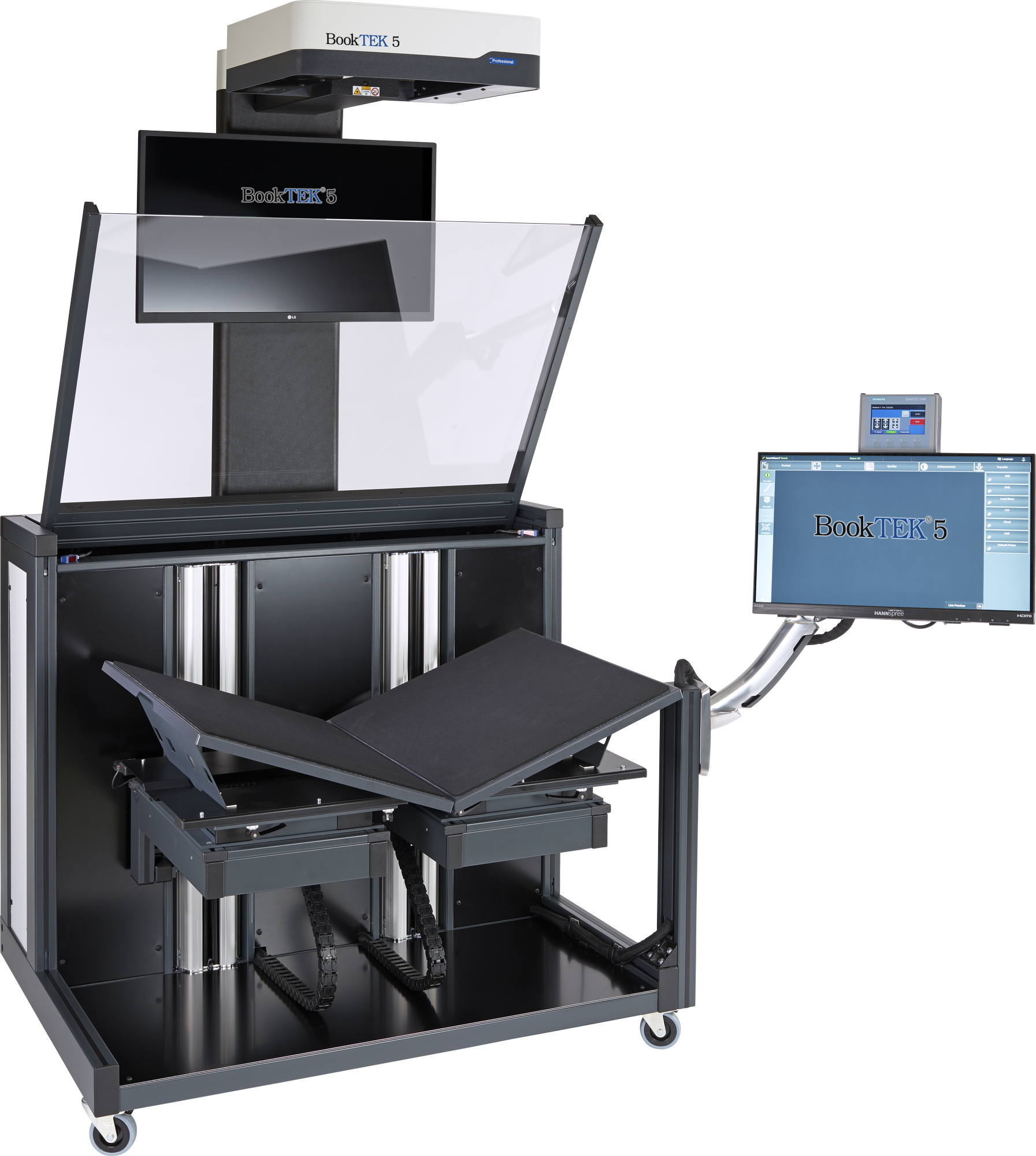

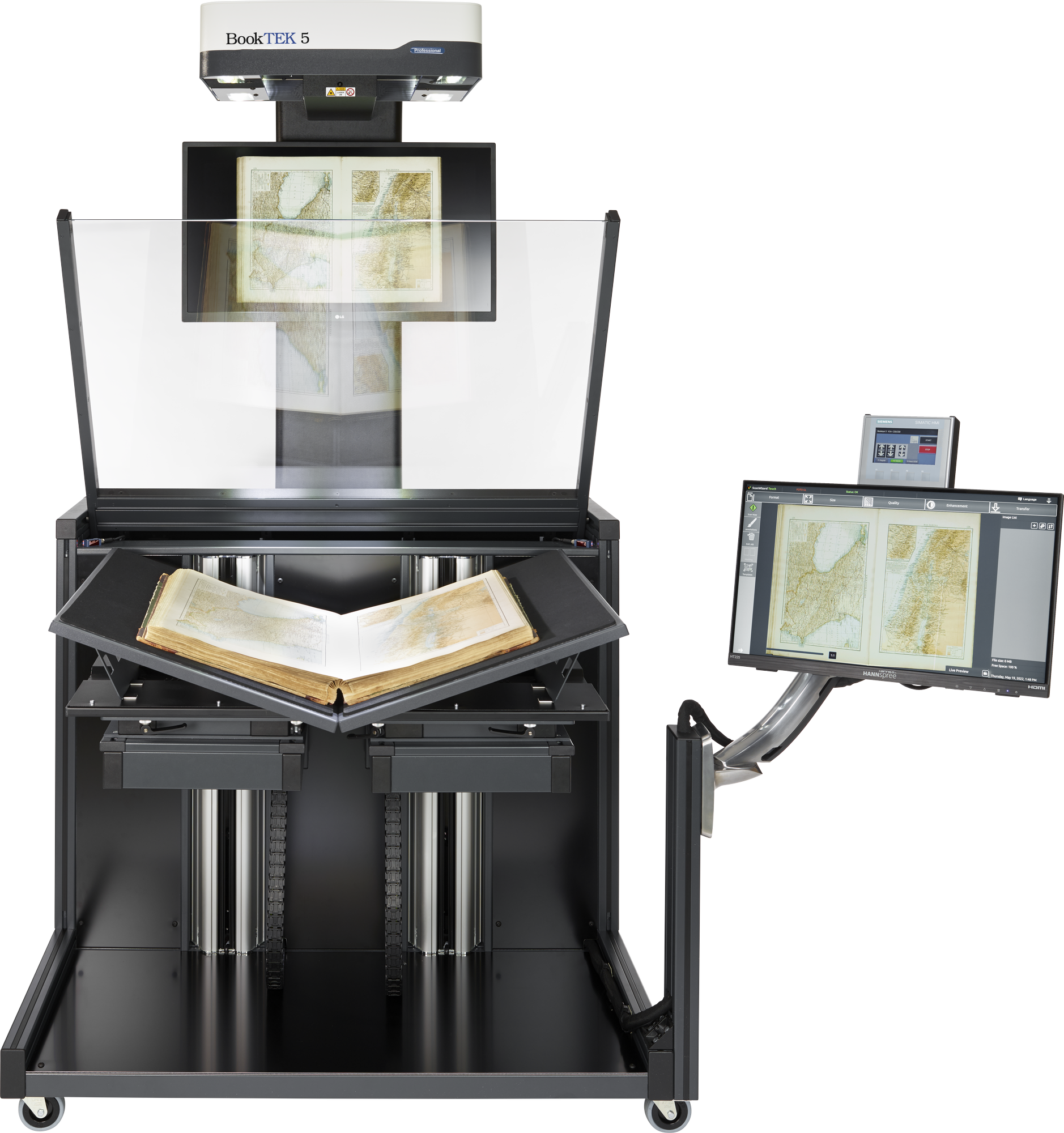

The BookTEK 5 V1A-C50 Book Cradle offers predefined modes for efficient scanning of various materials. Auto Mode enables fully automated operation, Book Mode scans open books flat, and V-mode gently handles delicate volumes with a 140° opening angle, ensuring excellent results while protecting fragile materials.

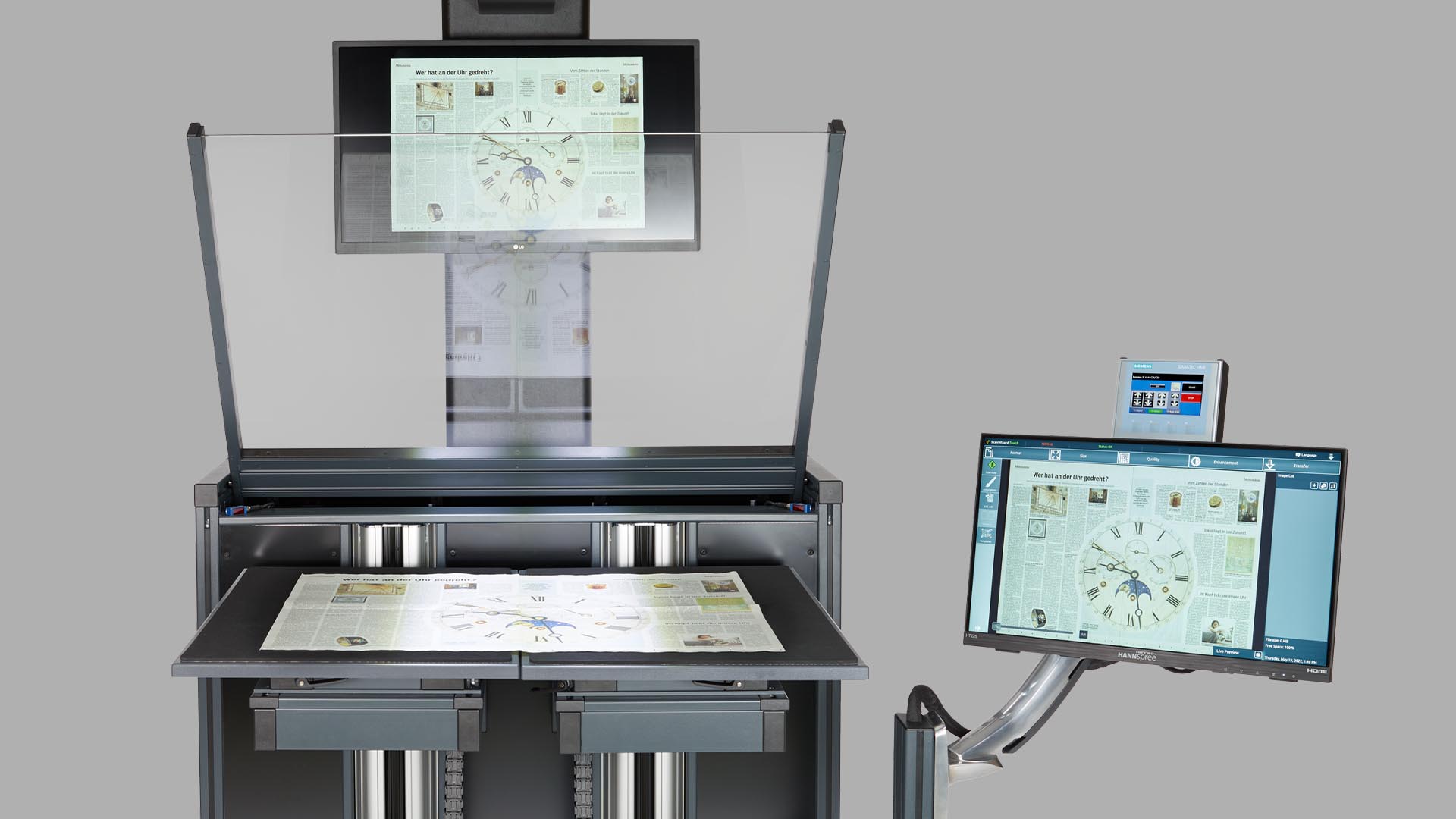

Dual monitor setup
With a spacious 27-inch 4K preview monitor in front of the operator for clear, detailed scanning feedback and a 21-inch Full HD multi-touchscreen for easy operation, this setup offers optimal control and visual clarity for smooth, efficient scanning.
Legal Information
03/2026
Technical Specification BE5-V1A-C50
04/2025
Instruction Scan2ICC
09/2021
Declaration about the Emission of UV and IR radiation
11/2021
Book Scanner Buyer´s Guide
02/2021
Product Brochure BE5-V1A-C50
04/2025
Product Brochure Scan2Net®
09/2022
Fact Sheet BE5-V1A-C50 (Coming soon)
-
--.--.--
Maximum Documents Size
635 x 914 mm (25 x 36 inch), 16% more than DIN/ISO A1
Scanner Resolution
600 x 600 dpi
Pixel Dimension
9.3 x 9.3 µm
Scan Speed Color
DIN A1+ @ 150 dpi: 1.2 s
DIN A1+ @ 200 dpi: 1.5 s
DIN A1+ @ 300 dpi: 2.1 s
DIN A1+ @ 400 dpi: 2.8 s
DIN A1+ @ 600 dpi: 4.1 s
Color Depth
48 bit color, 16 bit grayscale
Scan Output
24 bit color, 8 bit grayscale, bitonal, enhanced halftone
ICC Profiles
Embedded for sRGB, Adobe RGB and native. Individual profiling via web based Scan2ICC subscription
Quality
Complies to FADGI *** guidelines, Metamorfoze Light, ISO 19264-1
Computer
64 bit Linux, Intel Core i3 generation 8 processor, 240GB SSD, 8 GB memory for extra large jobs
Touchscreen
21 inch Full HD 1920 * 1080 multitouch screen
Monitor
27 inch 4K preview screen
USB Port
2 x USB 3.0 port, 4 x USB 2.0 port
Interface
2.5 GBit Fast Ethernet with TCP/IP based Scan2Net® interface
Camera
CCD line sensor, 22,500 pixels (11,000 scan lines equals to a 245 MPixel matrix camera)
Live Preview Camera
CMOS matrix, area sensor
Light Source
White LEDs, tested according to IEC 62471, no IR/UV emission
Declaration about the Emission of UV and IR radiation
Lamp Lifetime
50,000 h typ. Lamps are covered by the Extended Warranty Option
Dimensions Scanner (H x W x D)
1.900 x 1.800 x 1.000 mm (75 x 71 x 39 inch)
Weight Scanner
165 kg (364 lbs.)
Electrical Connection
100-240 V AC, 47 – 63 Hz (two external power supplies)
Power Consumption
< 33 W (Standby) / < 90 W (Ready to scan, Monitor on) / < 130 W (Scanning) / < 230 W (Fully automatic scan cycle)
ENERGY STAR requirements
Image Access FAQ
Operating Temp
5 to 40 °C (40 to 105 °F)
Rel Humidity
20 to 80% (non-condensing)
Noise
< 55 dB(A) (Fully automatic scan cycle) / < 38 dB(A) (Scanning) / < 33 dB(A) (Standby)
Technical changes, errors and omissions excepted. All information subject to change.
